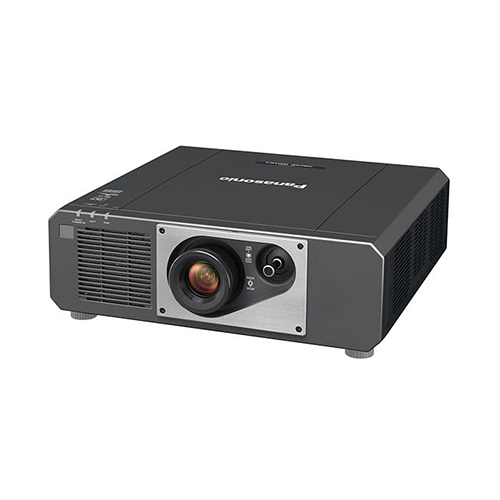

โปรเจคเตอร์ ยี่ห้อ PANASONIC รุ่น PT-FRZ60B
| Projector type | 1-Chip DLP™ projector | |
|---|---|---|
| DLP™ chip | ||
| Panel size | 17.0 mm (0.67 in) diagonal (16:10 aspect ratio) | |
| Display method | DLP™ chip x 1, DLP™ projection system | |
| Number of pixels | 2,304,000 (1920 x 1200 pixels) | |
| Light source | Laser diodes | |
| Light output | 6,000 lm*1/6,200 lm (Center)*2 (When [Picture Mode] is set to [Dynamic], [Daylight View] is set to [OFF], [Dynamic Contrast] is set to [OFF], [Light Output] is set to [100 %], and [Auto Power Save] is set to [OFF]) |
5,200 lm*1/5,400 lm (Center)*2 (When [Picture Mode] is set to [Dynamic], [Daylight View] is set to [OFF], [Dynamic Contrast] is set to [OFF], [Light Output] is set to [100 %], and [Auto Power Save] is set to [OFF]) |
| Time until light output declines to 50 %*3 | 20,000 hours (Normal) | |
| Resolution | 1920 x 1200 pixels | |
| Contrast ratio*1 | 20,000:1 (Full On/Full Off, Picture Mode: Dynamic, Dynamic Contrast 1, Operating Mode: Normal) | |
| Screen size (diagonal) | 1.02–7.62 m (40–300 in), 16:10 aspect ratio | |
| Center-to-corner zone ratio*1 | 90 % | |
| Lens | 2.0x manual zoom (throw ratio: 1.46–2.94:1), manual focus, F 2.0–3.4, f 21.5–43.0 mm | |
| Lens shift (From the origin point of the lens mounter) | ||
| Vertical | +64 %, -44 % (manual) | |
| Horizontal | +34 %, -27 % (manual) | |
| Keystone correction range | Vertical: ±40 °, Horizontal: ±20 ° | |
| Installation | Ceiling/floor, front/rear, free 360-degree installation | |
| Terminals | ||
| HDMI 1 IN/HDMI 2 IN | HDMI 19-pin x 2 (Compatible with HDCP 2.3, Deep Color, 4K/60p signal input*4), CEC supported | |
| COMPUTER 1 IN | D-sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR) | |
| COMPUTER 2 IN/1 OUT | D-sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR) | |
| VIDEO IN | Pin jack x 1 (composite video) | |
| AUDIO IN 1 | Pin jack x 1 (L, R) | |
| AUDIO IN 2/3 | M3 x 1/M3 x 1 | |
| AUDIO OUT | M3 x 1 (Variable) | |
| SERIAL IN | D-sub 9-pin (female) x 1 for external control (RS-232C compliant) | |
| DIGITAL LINK | RJ-45 x 1 for network and DIGITAL LINK connections (HDBaseT™ compliant), PJLink™ (Class 2) compatible, 100Base-TX, Art-Net compatible, HDCP 2.3 compatible, Deep Color compatible, 4K/60p signal input*4 | |
| LAN | RJ-45 x 1 for network connection, PJLink™ (Class 2) compatible, 10Base-T/100Base-TX, Art-Net compatible | |
| USB | USB connector (Type A) x 1 (Output 5 V/2 A) | |
| Power supply | AC 100–240 V, 50/60 Hz | |
| Power consumption | 540 W | 465 W |
| Cabinet materials | Molded plastic | |
| Operation noise*1 | 30 dB (Quiet Mode), 35 dB (Normal Mode) | 27 dB (Quiet Mode), 32 dB (Normal Mode) |
| Dimensions (W x H x D) | 498 x 168*5 x 492 mm (19 5/8˝ x 6 5/8˝*5 x 19 3/8˝ ) | |
| Weight*6 | Approx. 16.1 kg (35.5 lbs) | Approx. 16.0 kg (35.3 lbs) |
| Operating environment | Operating temperature: 0–45 °C (32–113 °F), operating humidity: 10–80 % (no condensation) | |
| Applicable software | Logo Transfer Software, Multi Monitoring & Control Software, Early Warning Software | |
