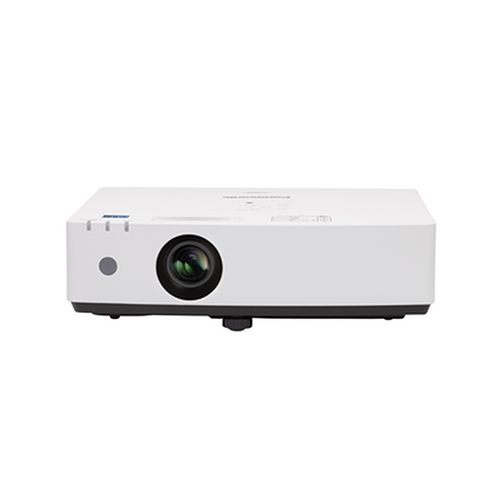

โปรเจคเตอร์ ยี่ห้อ PANASONIC รุ่น PT-LMW420
Product Specifications
| PT-LMZ420 | |
|---|---|
| PROJECTOR TYPE | LCD projector |
| LCD Panel | |
| Panel size | 16.3 mm (0.64 in) diagonal (16:10 aspect ratio) |
| Display System | Transparent LCD panel (x 3, R/G/B) |
| Drive Method | Active matrix |
| Pixels | 2,304,000 (1920 x 1200) pixels |
| Light source | Laser diodes |
| Light output*1*2 | 4,200 lm |
| Time until light output declines to 50 %*3 | 20,000 hours (NORMAL/QUIET)/24,000 hours (ECO) |
| Resolution | WUXGA (1920 x 1200 pixels) |
| Contrast ratio*1 | 3,000,000:1 (Full On/Full Off) (When [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] is set to [1].) |
| Screen size (diagonal) | 0.76–7.62 m (30–300 in), 16:10 aspect ratio |
| Center-to-corner zone ratio*1 | 85 % |
| Lens | 1.2x manual zoom (throw ratio: 1.36–1.64:1), manual focus lens, F 1.61–1.76, f 19.1–23.0 mm |
| Digital Zoom Extender4 | Throw ratio: 1.36–2.05:15 (Corresponding value. When used together with optical zoom.) |
| Keystone correction range | Vertical: ±25 ° (Auto, Manual), Horizontal: ±35 ° (Manual) |
| Installation | Ceiling/floor, front/rear, free 360-degree installation |
| TERMINALS | |
| HDMI 1/2 IN | HDMI 19-pin x 2 (Compatible with HDCP, Deep Color, 4K/30p6 signal input), CEC supported7 |
| Computer 1 In | D-sub 15-pin (female) x 1 (RGB/YPBPR/YCBCR) |
| Computer 2 In | D-sub 15-pin (female) x 1 (RGB/YPBPR/YCBCR) |
| AUDIO 1/2 IN | M3 stereo mini-jack x 2 |
| Variable Audio Out | M3 stereo mini-jack x 1 |
| Serial In | D-sub 9-pin (female) x 1 for computer control (RS-232C compliant) |
| LAN | RJ-45 x 1 for network control, 10Base-T, 100Base-TX |
| USB(VIEWER/WIRELESS/DC OUT) | USB connector (Type A) x 1 for Memory Viewer function, optional AJ-WM50 Series Wireless Module, power supply (DC 5 V, maximum 2 A8) |
| Power Supply | AC 100 V–240 V, 50/60 HZ |
| Max. Power consumption9 | 240 W |
| Built-in speaker | 10 W monaural |
| Cabinet materials | Molded plastic |
| Filter*10 | Included (Estimated maintenance time: approx. 20,000 hours) |
| Operation noise*1 | 33 dB (NORMAL/ECO), 23 dB (QUIET) |
| Dimensions (W x H x D) |
349 mm x 105 mm x 309 mm (13 3/4˝ x 4 1/8˝ x 12 5/32˝) (with feet at shortest position) |
| Weight with supplied lens*11 | Approx. 4.2 kg (9.26 lbs) |
| Operating environment | Operating temperature: 0–45 °C (32–113 °F)12, Operating humidity: 20–80 % (no condensation) |
| Applicable software | Multi Monitoring & Control Software, Logo Transfer Software, Presenter Light Software for Windows®13, Wireless Projector App for iOS/Android™14 |
