CDE7530

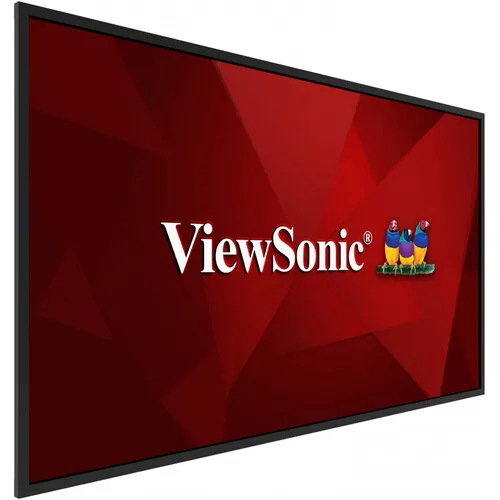

จออินเตอร์แอคทีฟ ยี่ห้อ ViewSonic รุ่น CDE7530

75″ 4K Presentation Display

• Wireless presentation for enhanced efficiency ​
• Single USB-C cable for 65W power delivery
• 24/7 video playback for continuous communication
• Remote device management with myViewBoard Manager ​
• ProAV compatibility with Crestron, Extron, and AMX​
• Portrait-oriented display for impactful brand signage

1. Speaker
2. USB 2.0
3. RS-232
4. USB 3.0
5. USB-C
6. HDMI 1(ARC)
7. HDMI 2
8. HDMI OUT
9. HDMI 3
10. Control Panel
11. WiFi Slot
12. VESA® Wall Mount (600x400mm)
13. AC IN
14. Power Switch
15. LAN
16. SPDIF

SPECIFICATIONS

Display

• Panel Size: 75″
• Type/ Tech: TFT LCD Module. ADS type, DLED backlight
• Display Area (mm): 1649.664 (H) ×927.936 (V) (75” diagonal)
• Native Resolution: 3840 x 2160
• Aspect Ratio: 16:9
• Colors: 1.07G (8bits + FRC-)
• Brightness: 450 nits (typ.)
• Contrast Ratio: 1200:1 (typ.), 5000:1 (DCR enabled)
• Response Time: 8ms
• Viewing Angles: H = 178, V = 178 typ.
• Backlight Life: 50,000 hours
• Surface Treatment: Anti-Glaire, 3H hardness, Haze 25%
• Bezel: 14.7/14.7/14.7/14.7 mm (L/R/T/B)
• Orientation: Landscape & Portrait

Platform

• Processor: Quad-core ARM Cortex A55
• RAM: 4GB
• Storage: 32GB

INPUT

• HDMI: 2.1×3 ( 3840×2160 @60Hz, HDMI 1 support ARC)
• RS-232: x 1
• OPS Slot: x 1
• WiFi Slot: x 1

OUTPUT

• HDMI: 2.0 x1 ( 3840×2160 @60Hz )
• SPDIF: x 1

LAN

• RJ45: x 1

USB

• Type A: USB 2.0 x 1; USB 3.0 x 1 (USB 3.0 Support Smart USB)
• Type C: x 1 (Support Smart USB, DP1.2, PD 65W, USB2.0, 100M ethernet)

SPEAKERS

• 10W x2

Embedded OS

• Android 11

POWER

• Voltage: 100-240 VAC +/- 10%
• Consumption: 126 W(typ.) < 0.5W(off)

OPERATING CONDITIONS

• Temperature (º C): 0 to 40℃
• Humidity: 10%-90% RH

Operating Hours

• 7/24

DIMENSIONS (W x H x D)

• Physical (inch / mm): 66.36 x 37.94 x 3.21in/ 1685.6 x 963.7 x 81.6mm
• Packaging (inch / mm): 73.35 x 42.91 x 8.86 in./1863 x 1090 x 225 mm

WEIGHT

• Net (lb / kg): 76.39 lbs/34.65 kg
• Gross (lb / kg): 106.15 lbs/48.15 kg

REGULATIONS

• cTUVus, FCC/ICES003, Energy star 8.0, EPEAT, Mexico NOM , Mexico Energy, EMC/CE , CB, EAC, UkrSEPRO, RCM, LBL, Flicker free, Green BOM, RoHS , ErP, REACH, SCIP, WEEE , Annex I, Annex II, TPCH , Packing waste, CA65

PACKAGE CONTENTS

1. Remote Control with batteries
2. Quick Start Guide
3. Power Cables
4. HDMI cable
5. USB-C cable
6. Wall Mount Screw x 4
7. RS232 adapter
8. Compliance statement
