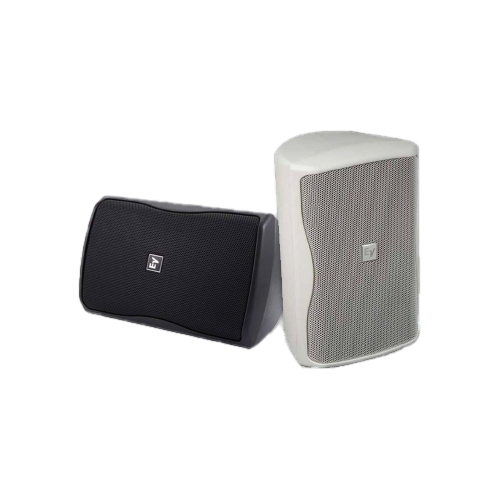

ตู้ลำโพง ยี่ห้อ EV,Electro-Voice รุ่น ZX5-60W

Features:

• Versatile performance for mains, fills, or monitors
• DVX3150A woofer with forced-air cooling
• 2-inch ND2 titanium/neodymium HF driver
• Switchable bi-amp or passive crossover operation
• Choice of 90º x 50º or 60º x 60º coverage horn
• High sensitivity, 132 dB maximum SPL
• Power handling: 600 W continuous, 2400 W peak
• High impact polypropylene enclosure
• Wedge shape for monitors at 45º or 55º
• Up to five anchor-plate attachments
• M8 mounting inserts (10)
• Integrated handle
• Available in black or white

Specifications

• Chassis Size:       381 mm (15″)
• Color:    Black, white
• Input Connections:      Parallel Neutrik® NL4
• Speaker Type:   Full-range, Mid-High, Two-Way, Wedges
• Frequency Response (-3 dB):       58 – 18000 Hz
• Frequency Response (-10 dB):    39 – 20000 Hz
• Internal Crossover:          Switchable biamp or passive crossover
• Recommended High-Pass Frequency:     36 Hz
• Sensitivity 1 W/1 m:        98 dB
• Max. SPL/1m (calc):         132 dB
• Coverage (Nominal -6 dB) H:        90/60 °
• Coverage (Nominal -6 dB) V:        50/60 °
• System Power Handling (Continuous/Program/Peak):     600//2400 Watts
• LF Transducer:   15-inch DVX3150A
• LF Power Handling:     500 Watts
• HF Power Handling:    40 Watts
• LF Nominal Impedance  8 Ω
• HF Transducer   2-inch ND2
• HF Nominal Impedance: 8 Ω
• Crossover Frequency:    1500 Hz
• Nominal Impedance (Passive):   8 Ω
• Minimum Impedance:   6.5 Ω
• Enclosure Material:         High Impact Polystyrene
• Flying:   Yes
• Grill:       Polyester Powder Coated, 18GA Galvanized Steel
• Height: 692 mm (27.24″)
• Width:  446 mm (17.56″)
• Depth:  411 mm (16.18″)
• Weight Net:    22.2 kg (48.94 lbs)
