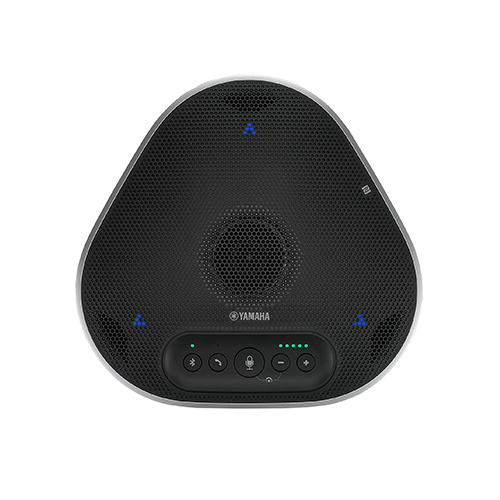

ชุดไมค์ประชุมพร้อมลำโพง ยี่ห้อ YAMAHA รุ่น YVC-330
GENERAL
- Interfaces : USB 2.0 Full Speed (Mini-B), Bluetooth, NFC (Near Field Communication), EXT IN/OUT (stereo mini plug)
- Connectable Devices : USB: Computer running Windows or macOS / Bluetooth: Smartphone running Android or iOS
- Power Sources : USB bus power
- Maximum Power Consumption : 2.5W
-
Dimensions (W x H x D) : 235 x 46 x 226 mm (9.3 x 1.8 x 8.9 in)
-
Weight : 0.8 kg (1.8 lbs)
-
Color : Black
-
Supported OS : Windows 10 (32bit/64bit), Windows 8.1 (32bit/64bit), Windows 7 (32bit/64bit), macOS 10.14, macOS 10.13, macOS 10.12 USB: USB 2.0 or later
-
Bluetooth : Version: 2.1 + EDR Supported profiles: HFP (1.6), A2DP Supported codec: CVSD, SBC, mSBC Wireless output: Class2 Maximum communication distance: 10 m (32.8 ft) (no obstacles) Radio frequency (operational frequency): 2,402 to 2,480 MHz Maximum output power (EIRP): 4.0 dBm (2.5 mW)
-
NFC : Compatible devices: NFC-compatible Android devices, versions 5.0, 4.4, 4.3, 4.2, and 4.1
-
Accessories : USB cable 3 m (9.8 ft), User’s Manual
-
Operating Environment : Temperature: 0 to 40 °C (32 to 104 °F) / Humidity: 20 to 85% (no condensation)
-
Storage Environment : Temperature: -20 to +50 °C (-4 to 122 °F) Humidity: 10 to 90% (no condensation)
-
Others : Firmware update (transferred from a PC through USB)
AUDIO
- Microphone : Unidirectional microphones x 3, 360° coverage
- Speaker : Full-range speaker x 1
-
Volume : Momentary maximum: 91 dB (0.5 m)
-
Frequency Bandwidth : For sound pickup: 100 Hz to 20,000 Hz For playback: 190 Hz to 20,000 Hz
-
Signal Processing : Adaptive echo canceller, Noise reduction, Automatic tracking, Automatic gain control, Dereverberation, SoundCap
-
Mode : Standard Mode: Pick-up the sound in Small-Medium conference rooms SoundCap Mode: Automatically mute distracting noise in open workspace and deliver only the sound from the pick-up range (radius of 1 m) * 2 units daisy chain connection is available on Standard Mode
COMPLIANCE
- Safety : CB/G (IEC60065, IEC62368) CE (EN62368, EN62479, EN62311) CCC (GB8898)
- EMC : FCC (part15B ICES-003) CE (EN55032, EN55035, EN55020, EN61000, EN301489) AS/NZS (AS/NZS CISPR32, AS/NZS 4268) KC (KN301489, KN32, KN35) CCC (GB/T 13837, GB17625) VCCI (VCCI 32-1) EAC
- Radio : FCC (Part15B) Class A, ICES-003 CE (EN300328, EN300330) SRRC KC (KN301489)
- RoHS : CE (EN50581)
WARRANTY
- Warranty : 2 Years
