อุปกรณ์เสริมสำหรับจอแสดงผลแบบอินเทอร์แอคทีฟ ยี่ห้อ Hisense รุ่น S02EMS7CA51B
อุปกรณ์เสริมสำหรับจอแสดงผลแบบอินเทอร์แอคทีฟ

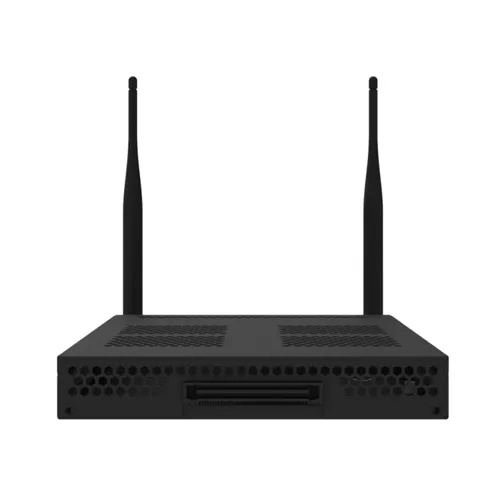

คอมพิวเตอร์ขนาดเล็ก i7-12650H สำหรับจอแสดงผลแบบอินเทอร์แอคทีฟ HISENSE S02EMS7CA51B ออกแบบมาเพื่อติดตั้งลงในช่อง OPS (Open Pluggable Specification) ของจอแสดงผลโดยเฉพาะ ทำให้จอแสดงผลสามารถใช้งานได้เหมือนคอมพิวเตอร์ PC ทั่วไป ระบบปฏิบัติการ Windows 11 Pro รองรับการติดตั้งและใช้งานง่าย ช่วยให้การใช้งานจอแสดงผล Hisense มีความหลากหลายและมีประสิทธิภาพมากขึ้น โดยไม่ต้องเชื่อมต่อกับคอมพิวเตอร์ภายนอก เหมาะสำหรับใช้ในห้องเรียน ห้องประชุม หรือการแสดงผลป้ายดิจิทัลต่างๆ
คุณสมบัติ
- CPU Intel Core™ i7-12650H
- RAM 16GB
- SSD 512GB
- ระบบปฏิบัติการ Windows 11 Pro
- รองรับการติดตั้งและใช้งานง่าย
Product Overview
| Specification |
Details |
| Model |
S02EMS7CA51B |
| Product Type |
OPS (Open Pluggable Specification) Computer Module |
| Form Factor |
80-pin OPS Module |
| Application |
Interactive Displays, Digital Signage, Conference Systems |
Processor & Performance
| Specification |
Details |
| CPU |
Intel Core™ i7-12650H (12th Generation) |
| Base Clock Speed |
2.3 GHz |
| Max Turbo Speed |
Up to 4.7 GHz |
| Cores/Threads |
10 Cores (6P+4E) / 16 Threads |
| Cache |
24MB Intel Smart Cache |
| Graphics |
Intel Iris Xe Graphics |
| TDP |
45W (Base) |
Memory & Storage
| Specification |
Details |
| RAM |
16GB DDR4 |
| Memory Type |
Dual-channel |
| Maximum RAM Support |
Up to 32GB |
| Storage |
512GB SSD |
| Storage Type |
M.2 SATA/NVMe |
| Storage Expansion |
Supports additional M.2 storage |
| Security |
TPM 2.0 Encryption |
| Recovery Partition |
mSATA system disc with one-click restore |
Connectivity
| Specification |
Details |
| LAN |
Integrated 10/100/1000M Ethernet |
| WiFi |
WiFi 6 (IEEE 802.11ax) |
| Bluetooth |
Bluetooth 5.2 |
| USB 3.0 |
4 ports |
| USB 2.0 |
2 ports |
| HDMI Output |
1 × HDMI 2.0 |
| DisplayPort Output |
1 × DP 1.2 |
| VGA Output |
Not Available |
| Audio Input |
1 × Microphone In |
| Audio Output |
1 × Line Out |
Power & Environmental
| Specification |
Details |
| Power Requirements |
12V-19V DC |
| Maximum Power |
90W |
| Standby Power |
0.5W |
| Operating Temperature |
0°C ~ 40°C |
| Storage Temperature |
-20°C ~ 60°C |
| Operating Humidity |
10% ~ 90% (Non-condensing) |
| Storage Humidity |
10% ~ 90% (Non-condensing) |
Physical Specifications
| Specification |
Details |
| Dimensions (L×W×H) |
180 × 195 × 30 mm |
| Net Weight |
1.4 kg |
| Color |
Black |
| LED Indicators |
HDD LED, Power LED |
Software & Operating System
| Specification |
Details |
| Operating System |
Windows 11 Pro 64-bit |
| Pre-installed |
Yes |
| License |
Genuine Windows 11 Pro |
Certifications & Compliance
| Specification |
Details |
| Certifications |
CB, CE, cTUVus, UKCA, FCC, IC |
| Warranty |
3 Years (Standard) |
| CPU |
i7-12650H |
| RAM |
16GB |
| SSD |
512GB |
| ช่องเชื่อมต่อ |
USB 3.0: 4 ช่อง
USB 2.0: 2 ช่อง
HDMI out: 1 ช่อง
DisplayPort out: 1 ช่อง
LAN: 1 ช่อง |
HISENSE S02EMS7CA51B
Accessory for Interactive Displays
The HISENSE S02EMS7CA51B is a compact i7-12650H computer designed specifically for interactive displays. It is built to be installed directly into the OPS (Open Pluggable Specification) slot of a display, allowing it to function as a full-featured PC. With the Windows 11 Pro operating system, this device is easy to install and use, making it ideal for classrooms, meeting rooms, or digital signage applications. It increases the versatility and efficiency of the display without the need for an external computer.
Specifications
- CPU: Intel Core™ i7-12650H
- RAM: 16GB
- SSD: 512GB
- Operating System: Windows 11 Pro
- Features: Easy to install and use
