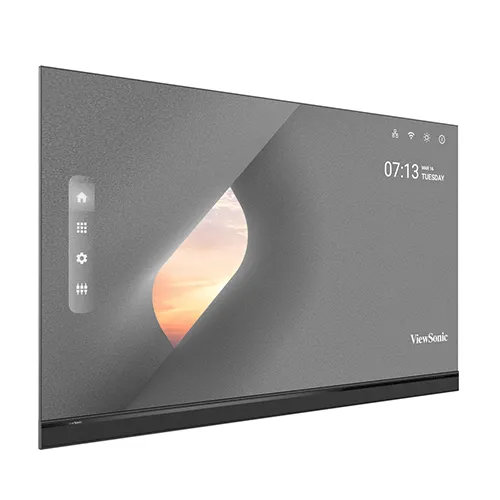

LED SCREEN ยี่ห้อ Viewsonic รุ่น LDS138-151
- Pre-assembled kit, ready for immediate use—no installation required
- Foldable screen that fits easily into large passenger elevators for convenient transport
- Shockproof, dustproof, and moisture-resistant with GOB surface treatment
- Built-in stand with an integrated control box and motorized height adjustment
- Seamless large display designed to captivate audiences in any space
Dimensions & I/O Ports
- HDMI Out
- Audio Out
- HDMI In x2
- S/PDIF Out
- USB 2.0 (5V/2A)
- LAN
- IR Extension
- Control Panent:Height Adjust
- Light Sensor
- IR Receiver
- USB-C (5V/1.0A)
- USB 3.0 (5V/0.9A)
- USB 2.0 (5V/0.5A)
- Menu Control: Setting
- Menu Control: Enter
- Menu Control: Brightness Level
- Power Button
- Indicator Light
SPECIFICATIONS
- Specification
Screen Size: 138″
Display Area (mm): 3050 (H) x 1715(V)
Native Resolution: 1920×1080
Panel Technology: Direct view LED
LED Package Type: SMD 3 in 1 (GOB)
Bonding Wire: Copper
Pixel Pitch (mm): 1.588
Brightness (max.): 600 nits (100 levels adjustable)
Contrast Ratio (typ.): 6500:1
Orientation: Landscape
Viewing Angles (typ.): H = 170, V = 170
LED Lifetime (typ.): 100,000 Hours
Local Storage: Total 32GB
(26GB available storage)
Embedded OS: Android 9.0
Resolution Support: VGA(640 x 480) to 4K(3840 x 2160@60hz)
HDTV Compatibility: 480p, 576p, 720p, 1080p, 2160p
Horizontal Frequency: 31K-94kHz
Vertical Scan Rate: 56-85Hz - Input
HDMI: x4
(HDMI 2.0, HDCP 2.2)
(internal x3 + external x1)
USB Type A: x3
(USB3.0 x1, USB2.0 x2)
RJ45 Input (Internet): x3
(internet x2, control x1)
IR in: x1
Wi-Fi Input: 2.4G/5G Hz
USB Type C: x1
(data only) - Output
HDMI out: x1
(HDMI 1.4, HDCP 1.4)
(internal x1)
Speaker: 30Wx2
Audio out (3.5mm): x2
USB Type A (Power): Shared with USB input
(USB 3.0 5V/0.9A x1, USB 2.0 5V/0.5A x1, USB 2.0 5V/2A x1, USB-C 5V/1A x1)
- Control
RJ45 (LAN control): x1(shared with internet)
USB Type A (Services): x1(shared with USB A input)
RS232 (DB 9-pin female): x1
IR Receiver: x1 - Others
Power Supply Voltage: 100-120V/20A ~ 50/60Hz or 220-240V/10A ~ 50Hz
(vary by country)
Power Consumption: 581W (typ), 1745W (max)
< 0.5W (Hibernate)
Operating Temperature: 0~40℃
Total LED Module Quantity: 200
Ingress Protection Rating: IP54(Front)
Net Weight: 511.16 lbs
(250 kg)
Gross Weight: 919.33 lbs
(417 kg)
Product Dimensions (WxHxD): 1850.81×1948.4x780mm(min.)
3064x2598x780 mm(max.)
Packing Dimensions (WxHxD): 81.5×78.58×33.35 inches
(2070x1996x847 mm) - Standard Accessories
Power Cord: x1
LAN Cable (Cat 5E): x1
IR Extender Cable: x1
Remote Control: x1
QSG: x1
Spare Parts: LED module x14
Maintenance Tool: LD-MK-004 x1
LD-MK-006 x1 - Optional Accessories
Maintenance Tool: LD-MK-004
LD-MK-006
