LED SCREEN  ยี่ห้อ Viewsonic รุ่น LDC027-180

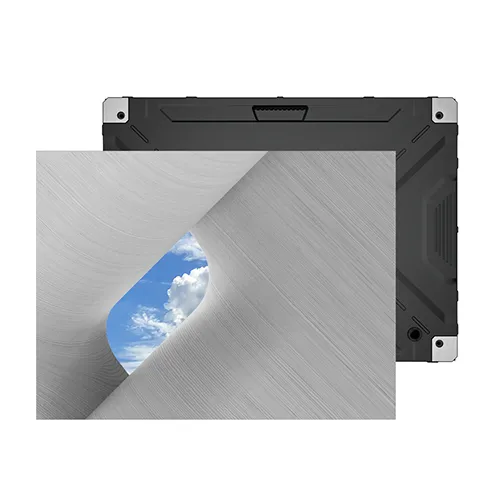

P1.8 Customizable All-in-One LED Display

• Customizable screen size with All-in-One design for hassle-free installation
• LED cabinets with a native 16:9 aspect ratio for easy configuration of 4K and FHD resolutions
• Anti-collision, dustproof, and moisture-proof through GOB surface treatment
• Centralized and efficient management via LAN control
• Detachable system control box for minimalistic aesthetics and easy access
• Ultra-slim design that seamlessly blends into any space

1. Speakers
2. HDMI Out
3. SPDIF Out
4. HDMI In*4
5. LAN
6. Audio Out*2
7. IR Interface
8. Light Senor
9. IR Receiver
10. USB-C
11. USB-A 3.0
12. USB-A 2.0
13. Menu Control:Setting
14. Menu Control:Enter
15. Menu Control:Brightness Level
16. Power Button
17. Indicator Light

SPECIFICATIONS

Screen Size: 27″
Display Area (mm): 600 (H) x 337.5(V)
Native Resolution: 320×180
Panel Technology: Direct view LED
LED Package Type: SMD 3 in 1 (GOB)
Bonding Wire: Copper
Pixel Pitch (mm): 1.875
Brightness (max.): 600 nits (100 levels adjustable)
Contrast Ratio (typ.): 6500:1
Orientation: Landscape
Viewing Angles (typ.): H = 170, V = 170
LED Lifetime (typ.): 100,000 Hours
Local Storage: Total 32GB
(26GB available storage)
Embedded OS: Android 9.0
Resolution Support: VGA(640 x 480) to 4K(3840 x 2160@60hz)
HDTV Compatibility: 480p, 576p, 720p, 1080p, 2160p
Horizontal Frequency: 31K-94kHz
Vertical Scan Rate: 56-85Hz

HDMI: x4
(HDMI 2.0, HDCP 2.2)
(internal x3 + external x1)
USB Type A: x2
(USB3.0 x1, USB2.0 x1)
RJ45 Input (Internet): x3
(internet x2, control x1)
IR in: x1
Wi-Fi Input: 2.4G/5G Hz
USB Type C: x1
(data only)

HDMI out: x1
(HDMI 1.4, HDCP 1.4)
(internal x1)
Speaker: 30Wx2
Audio out (3.5mm): x2
USB Type A (Power): Shared with USB input
(5V/0.9A x1, 5V/0.5A x1, USB-C 5V/1A x1)
