12 Inch 2-Way Full Range Loudspeaker System

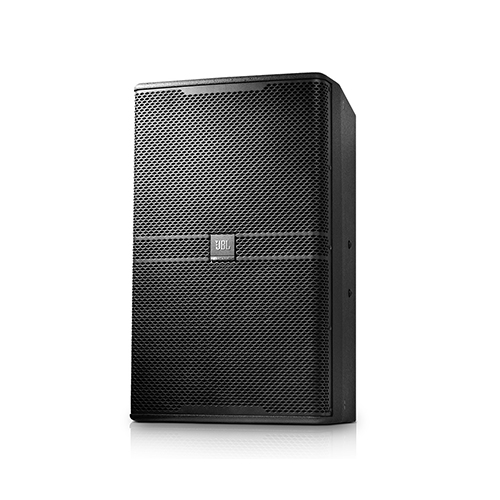

The KP4012 is a compact and premium high-output full-range loudspeaker. The KP4012 uses a 305 mm (12 in) humidity protection woofer with optimal demodulating/cooling aluminium ring inside, which is high power, low distortion and low power compression, and a 2408H-2 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver for 350 watts power capacity. 70° x 100° coverage pattern provides smooth, even coverage whether used in the vertical or horizontal orientation. The high-order passive network minimizes band overlap.

Features

• 12″ high efficiency woofer design
• 1.5″ annular polymer diaphragm compression driver
• Enclosure constructed of 15 mm birch plywood with rugged durable finish
• 70° x 100° coverage pattern for even and smooth response on and off axis
• Attractive cloth backed robust steel grille design
• Precision engineered crossover for optimal driver integration
• Rotatable JBL ENTERTAINMENT logo for both horizontal and vertical applications
• Two enclosure color option: Black (KP4012) or White (KP4012-WH)
• Karaoke sound reinforcement
• Club live sound reinforcement
• High-performance satellite speaker for use with subwoofers

Specifications

• System Type  : 12″, 2-way, bass-reflex
• Frequency Range (-10dB) : 47 Hz – 20 KHz
• Frequency Response (±3 dB) : 80 Hz – 20 KHz
• System Sensitivity (1w @ 1m) : 97.5 dB
• Nominal Impedance : 8 ohms
• Maximum SPL (1m) : 125 dB (131 dB peak)
• Power Rating(Continuous/Program/Peak) : 350 W/700 W/1400 W
• Coverage Pattern : 70° x 100° (H x V)
• Dimensions (H x W x D) : 600 mm x 360 mm x 382 mm (23.6 in x 14.2 in x 15.0 in)
• Net Weight : 18.5 Kg (40.7 lbs)
• LF Driver : 1 x 12 inch woofer, 2.5 inch voice coil, ferrite magnet
• HF Driver : 1 x 2408H-2 compression driver, 1.5 inch voice coil, NEO magnet
• Input Connectors : 2 x Neutrik® Speakon® NL4MP
• ENCLOSURE CONSTRUCTION : Trapezoid, 15 mm, plywood
• Enclosure Color : Black(KP4012)/White(KP4012-WH)
