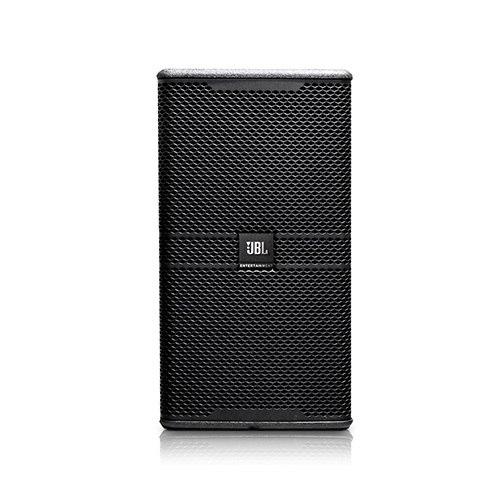

10 Inch 2-Way Full Range Loudspeaker System

The KP4010 is a premium high-output compact full-range loudspeaker. The KP4010 uses a 254 mm (10 in) humidity protection woofer with optimal demodulating/cooling aluminium ring inside, which is high power, low distortion and low power compression, and a 2408H-2 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver for 300 watts power capacity. 70° x 100° coverage pattern provides smooth, even coverage whether used in the vertical or horizontal orientation. The high-order passive network minimizes band overlap.

Features

• 10″ high efficiency woofer design
• 1.5″ annular polymer diaphragm compression driver
• Enclosure constructed of 15 mm birch plywood with rugged durable finish
• 70° x 100° coverage pattern for even and smooth response on and off axis
• Attractive cloth backed robust steel grille design
• Precision engineered crossover for optimal driver integration
• Rotatable JBL ENTERTAINMENT logo for both horizontal and vertical applications
• Two enclosure color option: Black (KP4010) or White (KP4010-WH)
• Karaoke sound reinforcement
• Club live sound reinforcement
• High-performance satellite speaker for use with subwoofers

Specifications

• System Type : 10″, 2-way, bass-reflex
• Frequency Range (-10dB) : 50 Hz – 20 KHz
• Frequency Response (±3 dB) : 85 Hz – 20 KHz
• System Sensitivity (1w @ 1m) : 95 dB
• Nominal Impedance : 8 ohms
• Maximum SPL (1m) : 122 dB (128 dB peak)
• Power Rating(Continuous/Program/Peak) : 300 W/600 W/1200 W
• Coverage Pattern : 70° x 100° (H x V)
• Dimensions (H x W x D) : 533 mm x 300 mm x 340 mm (21.0 in x 11.8 in x 13.4 in)
• Net Weight : 14.8 Kg (32.6 lbs)
• LF Driver : 1 x 10 inch woofer, 2.5 inch voice coil, ferrite magnet
• HF Driver : 1 x 2408H-2 compression driver, 1.5 inch voice coil, NEO magnet
• Input Connectors : 2 x Neutrik® Speakon® NL4MP
• ENCLOSURE CONSTRUCTION : Trapezoid, 15 mm, plywood
• Enclosure Color : Black(KP4010)/White(KP4010-WH)
