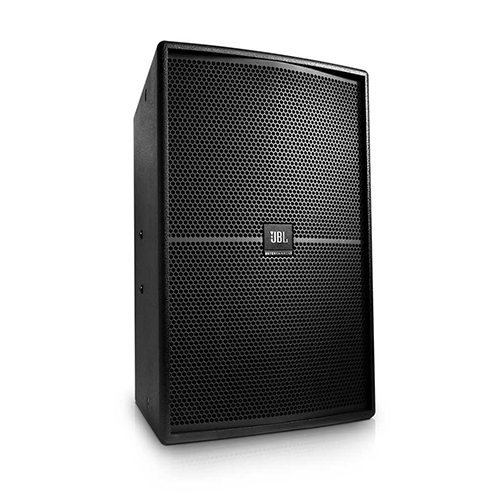

ตู้ลำโพง ยี่ห้อ JBL รุ่น KP2012

The KP2012 uses a 305 mm (12 in) humidity protection woofer with optimal demodulating/ cooling aluminium ring inside, which is high power, low distortion and low power compression, and a 2414H-C 25 mm (1 in) annular polymer diaphragm compression driver for 350 watts power capacity. 70° x 100° coverage pattern provides smooth, even coverage whether used in the vertical or horizontal orientation. The high-order passive network minimizes band overlap.

Features

• 12″ high efficiency woofer design
• 1″ annular polymer diaphragm compression driver
• Enclosure constructed of 15 mm medium density fiberboard with rugged durable finish
• 70° x 100° coverage pattern for even and smooth response on and off axis
• Attractive cloth backed robust steel grille design
• Precision engineered crossover for optimal driver integration
• Rotatable JBL ENTERTAINMENT logo for both horizontal and vertical applications
• Two enclosure color option: Black (KP2012) or White (KP2012-WH)
• Karaoke sound reinforcement
• Club live sound reinforcement
• High-performance satellite speaker for use with subwoofers

Specifications

• System Type : 12″, 2-way, bass-reflex
• Frequency Range (-10dB) : 48 Hz – 20 KHz
• Frequency Response (±3 dB) : 80 Hz – 17 KHz
• System Sensitivity (1w @ 1m) : 96 dB
• Nominal Impedance : 8 ohms
• Maximum SPL (1m) : 122 dB (128 dB peak)
• Power Rating (Continuous/Program/Peak) : 350 W / 700 W / 1400 W
• Coverage Pattern : 70° x 100° (H x V)
• Dimensions (H x W x D) : 605 mm x 382 mm x 390 mm (23.8 in x 15.0 in x 15.4 in)
• Net Weight : 21.2 Kg (46.7 lbs)
• LF Driver : 1 x 12″ woofer
• HF Driver : 1 x 2414H-C
• Input Connectors : 1 x Neutrik® Speakon® NL4MP
• ENCLOSURE CONSTRUCTION : Trapezoid, 15 mm, MDF
• Enclosure Color : Black(KP2012)/White(KP2012-WH)
