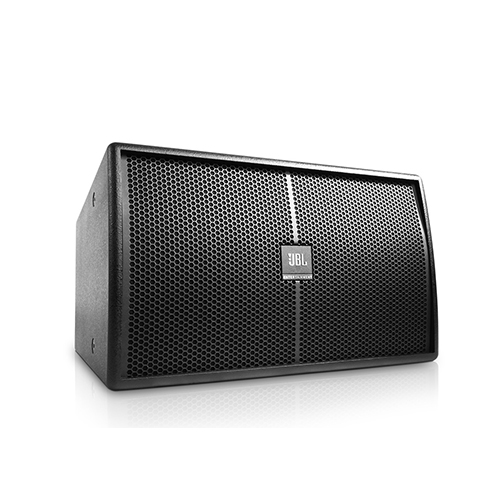

ตู้ลำโพง ยี่ห้อ JBL รุ่น KP4010
The KP2010 uses a 254 mm (10 in) humidity protection woofer with optimal demodulating/ cooling aluminium ring inside, which is high power, low distortion and low power compression, and a 2414H-C 25 mm (1 in) annular polymer diaphragm compression driver for 300 watts power capacity. 70° x 100° coverage pattern provides smooth, even coverage whether used in the vertical or horizontal orientation. The highorder passive network minimizes band overlap.
Features
- 10″ high efficiency woofer design
- 1″ annular polymer diaphragm compression driver
- Enclosure constructed of 15 mm medium density fiberboard with rugged durable finish
- 70° x 100° coverage pattern for even and smooth response on and off axis
- Attractive cloth backed robust steel grille design
- Precision engineered crossover for optimal driver integration
- Rotatable JBL ENTERTAINMENT logo for both horizontal and vertical applications
- Two enclosure color option: Black (KP2010) or White (KP2010-WH)
- Karaoke sound reinforcement
- Club live sound reinforcement
- High-performance satellite speaker for use with subwoofers
Specifications
- System Type : 10″, 2-way, bass-reflex
- Frequency Range (-10dB) : 50 Hz – 20 KHz
- Frequency Response (±3 dB) : 85 Hz – 17 KHz
- System Sensitivity (1w @ 1m) : 95 dB
- Nominal Impedance : 8 ohms
- Maximum SPL (1m) : 120 dB (126 dB peak)
- Power Rating (Continuous/Program/Peak) : 300 W / 600 W / 1200 W
- Coverage Pattern : 70° x 100° (H x V)
- Dimensions (H x W x D) : 537 mm x 320 mm x 340 mm (21.1 in x 12.6 in x 13.4 in)
- Net Weight : 16.3 Kg (35.9 lbs)
- LF Driver : 1 x 10″ woofer
- HF Driver : 1 x 2414H-C
- Input Connectors : 1 x Neutrik® Speakon® NL4MP
- ENCLOSURE CONSTRUCTION : Trapezoid, 15 mm, MDF
- Enclosure Color: Black(KP2010)/White(KP2010-WH)
