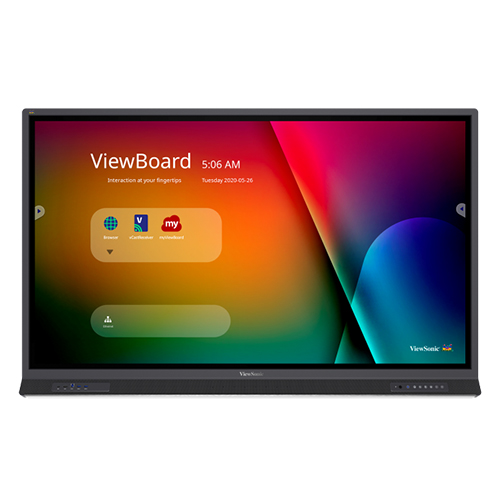

จออินเตอร์แอคทีฟ ยี่ห้อ ViewSonic รุ่น IFP8652-1B

Display

• Panel Size: 86″
• Panel Type: TFT LCD Module with DLED Backlight
• Display Area (mm): 1895.04(H) x 1065.96(V)
• Aspect Ratio: 16:9
• Resolution: UHD 3840 x 2160 (Pixels)
• Colours: 1.07B colours (10-Bit)
• Brightness: 400 nits (typ.)
• Contrast Ratio: 1200:1 Typ. , 5000:1 Max.(DCR enable)
• Response Time: 8ms
• Viewing Angles: H=178, V=178 typ.
• Backlight Life: 50,000 Hours (Typ.)
• Surface Treatment: Hardness: 7H (9H pencil), Anti-flare coating

Platform

• Processor: ARM Cortex A73*4
• RAM: 8GB (IFP8652-1B)
• Storage: 64GB (IFP8652-1B)
• Operating System: Android 9

Touch

• Type/ Tech: UFT (Ultra Fine Touch) Technology
• Touch Resolution: 32767 x 32767
• Touch Point: Windows: 33 points touch | Android: 20 points touch

Inputs

• HDMI: x2 (3840×2160@60Hz, HDCP2.2, CEC, Front x1, Side x1)x1 (3840×2160@60Hz, HDCP2.2, CEC, ARC, Side x 1)
• RGB / VGA: x1 (1920×1080 @60Hz)
• DisplayPort: x1 (3840×2160 @60Hz)
• Audio: x1 (PC audio in)
• RS232: x1
• OPS: module slot x 1
• WiFi: module slot x 1

Output

• HDMI: x1 (on demand)
• Audio: x1 (Earphone out)
• SPDIF: x1 (optical)
• LAN: x1 (RJ45)

USB

• Type A: USB 2.0 x 1(Side x1)USB 3.0 x 4 (Front x2, Side x2, SmartPort™ USB)
• Type B: x2, for touch
• Type C: x1 (USB3.0, DP1.2 Alt Mode, Ethernet, PD 60W)

Speakers & Microphone

• Speakers: 15W x 2 + 15W x 1 subwoofer
• Microphone: Built-in 8-array microphone

Bundle Software

• Basic Annotation Software: myViewBoard WhiteBoard for Android
• Pro Annotation Software: myViewBoard WhiteBoard for Windows (embedded in VPC)
• Wireless Presentation: ViewBoard Cast & myViewBoard Display

Special Features

• All-in-one USB port: USB 3.0 x 4 (combine Windows/Android USB port; no need to distinguish them anymore)
• Simple LAN sharing between IFP and slot-in device: 10/100/1000M for Android and PC
• Light Sensor: Yes

Power

• Voltage: 100-240VAC +/- 10% Wide Range
• Consumption: 332W (Typ.) < 0.5 W (“Off”)

Ergonomics

• Top Camera Plate: Yes
• Wall Mount (VESA®): 800 x 600

Operating Conditions

• Temperature (°C): 0°C to 40°C
• Humidity: 20% ~ 80% RH Non-Condensing

DIMENSIONS (W x H x D)

• Physical: 1966.4 (W) x 1204.4 (H) x 118.4 (D) mm
• Packaging: 2140 (W) x 1340 (H) x 280 (D) mm

Weight

• Net : 71 kg
• Gross : 89.1 kg

Regulations

• Regulations: cTUVus, FCC, EPEAT, Mexico coc, Mexico Energy, RoHS, Energy Star 8, CEC, EMC/CE, CB, RoHS & DOC, REACH, WEEE, ErP. EEI, RCM, BIS, PSE, VCCI, CCC, CECP, BSMI

Package Contents

• Power cable(3 meters)
• Remote control
• USB Type-C cable (1.5 meters)
• USB Touch cable (3 meters, USB2.0)
• Touch pen x 2
• Quick Start Guide + Compliance statement
• RS232 adapter
• Clamp x 5
• Camera Plate
• Screw x 8 (camera 2+2, wall mount 4)
• HDMI cable (3 meters)
• Eraser
• AAA Battery x 2

Optional Extra

• Compatible Slot-in PC: VPC12 & VPC25/27-O & VPC25/27-O-B series
