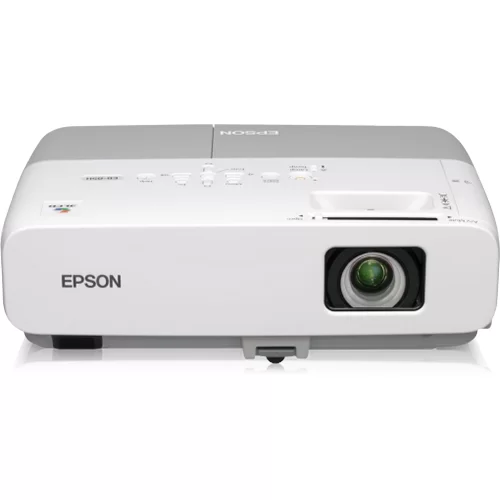

โปรเจคเตอร์ ยี่ห้อ EPSON รุ่น EB-825H
- ความสว่าง(ANSI Lumens) 3000
- ให้ความละเอียด(พิกเซล) 1024×768(XGA)
- ค่า Contrast เท่ากับ 2000
- สามารถแสดงภาพได้ขนาด(นิ้ว) 30-300
- ขนาดเครื่อง(มม.) H/W/D:95x327x250
- น้ำหนัก 3.1kg
- การรับประกัน ตัวเครื่อง 2 ปี หลอดภาพ 1 ปีหรือ 1000 ชม.
| PRODUCT TYPE | Entry Level Multimedia Projectors | ||
|---|---|---|---|
| PRODUCT NAME | Epson EB-825H | ||
| PRODUCT CODE | V11H356053 | ||
| PROJECTION SYSTEM | RGB Liquid Crystal Shutter Projection System | ||
| PROJECTION METHOD | Front / Rear / Ceiling Mount | ||
| SPECIFICATION OF MAIN PARTS | |||
| LCD | Size | 0.63 inches with MLA | |
| Driving method | Poly-Silicon TFT Active Matrix | ||
| Pixel number | 786,432 pixels (1024 x 768) x 3 | ||
| Native resolution | XGA | ||
| Aspect ratio | 4:3 | ||
| Pixel arrangement | Stripe | ||
| Refresh Rate | 50Hz-60Hz | ||
| PROJECTION LENS | Type | Manual zoom / focus | |
| F-number | 1.49 – 1.94 | ||
| Focal length | 18.2mm – 29.2mm | ||
| Zoom ratio | 1.0 ~ 1.62 Digital | ||
| LAMP | Type | 200W UHE E-TORL | |
| Life (estimated) | 5000Hr# (High bright), 6000Hr# (Low bright) | ||
| # Subject to operation and environmental conditions. | |||
| OPTICAL SYSTEM | Dichroic Mirror Separation & Prism combine method | ||
| SCREEN SIZE (PROJECTED DISTANCE) | 30 to 300 inch [0.88 to 8.7m] (Zoom: Wide) 30 to 300 inch [1.36 to 13.9m] (Zoom: Tele), |
||
| BRIGHTNESS | |||
| High Brightness Mode | 3,000 Lumens Light Output 3,000 Lumens Colour Light Output (Colour mode: Dynamic, Zoom: Wide) |
||
| Low Brightness Mode | 2,400 Lumens Light Output 2,400 Lumens Colour Light Output (Colour mode: Dynamic, Zoom: Wide) |
||
| CONTRAST | 2000:1 (Auto Iris On) | ||
| BRIGHTNESS UNIFORMITY | 90% (Typ.) | ||
| COLOUR REPRODUCTIVITY | Full colour (16.77 million colours) | ||
| VIDEO QUALITY | 3D Y/C separation (NTSC only), Motion compensated Interlace-Progressive conversion (3-2 film detection only) | ||
| SOUND OUTPUT | 10W monaural | ||
| EFFECTIVE SCANNING FREQUENCY RANGE (ANALOG) | |||
| PIXEL CLOCK | 13.5MHz to 162MHz | ||
| HORIZONTAL | 15KHz to 92KHz | ||
| VERTICAL | 50Hz to 117Hz | ||
| ADJUSTMENT FUNCTION | |||
| PROJECTOR / REMOTE CONTROL | Brightness / Contrast / Tint / Saturation / Sharpness / Input Signal Colour Temperature / Tracking / Position / Sharpness / Volume e.t.c. |
||
| FOOT ADJUSTER | Front-centre | ||
| TILT ANGLE | 0 to 11 degrees | ||
| AUTO KEYSTONE CORRECTION | Vertical: -30 to +30 degrees | ||
| PASSWORD PROTECTED FUNCTION (security function) |
Implemented | ||
| ANALOGUE RGB I/O | |||
| DISPLAY PERFORMANCE | Native | 1024 x 768 pixels | |
| INPUT SIGNAL | Signal type | Separate signal | |
| Video signal | Analogue (0.7V p-p, 75ohm / Mac 0.714Vp-p, 75ohm) | ||
| Sync. signal | Separate (positive & negative, bi-polarity 2-5 Vpp) / Composite (positive & negative, bi-polarity 2-5Vpp) / Sync-on-green (negative, 0.3Vpp) | ||
| Audio signal | 500mVrms / 47K-ohm | ||
| INPUT TERMINAL | Video | Video D-sub 15pin x 2 (Blue moulding) | |
| Audio | Stereo mini jack x 2 | ||
| OUTPUT SIGNAL | Video | Analog (0.7Vpp, 75ohm / Mac 0.714Vpp, 75ohm) | |
| Sync. | Separate (positive & negative,TTL) / Composite (positive & negative,TTL) / Sync. on green (negative 0.2 – 0.4Vpp) |
||
| OUTPUT TERMINAL | Video | D-sub 15pin x 1 (Black moulding) | |
| VIDEO I/O | |||
| DISPLAY PERFORMANCE | NTSC: 560 lines, PAL: 560 lines (Depends on observation of the multi burst pattern) | ||
| INPUT SIGNAL | Video standard | NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM | |
| Video signal | Composite Video (1.0Vpp / Sync. negative, 75ohm) / S-Video (Luminous 0.714Vpp, Chrominous 0.286Vpp, 75ohm) / Component Video (Analog Y level 0.75V 75ohm / Cr Cb level +/-0.35V 75ohm / sync. negative 0.3V or 3-state+/-0.3V on Y) / Video-RGB (0.7Vpp, 75ohm / Mac 0.714Vpp, 75ohm |
||
| Audio signal | 500mVrms / 47k-ohm | ||
| INPUT TERMINAL | Video | Composite Video: RCA (Yellow) x1 S-Video: Mini DIN Component Video: D-sub 15pin x 2 (Blue moulding) |
|
| MIC | |||
| Input Signal | Audio | -50dBV to -40dBV (0dB=1V/Pa,1kHz) (TBD) | |
| Input Terminal | Audio | Stereo mini jack (Plug in Power IS N/A) |
|
| CONTROL I/O | |||
| SERIAL I/O | Terminal | D Sub 9 pin x 1 | |
| Signal | RS-232C | ||
| EASY MP | |||
| FUNCTION | ESC/VP.net | ||
| E-mail notification | |||
| SNMP | |||
| Web control | |||
| PJ-Link | |||
| Duet | |||
| PC FREE | Message Broadcast | ||
| File Browser | |||
| Still Image | JPG; Thumbnail | ||
| Slideshow | |||
| WIRELESS Connectivity | 802.11 b/g | With optional wireless adapter | |
| SECURITY (Wireless LAN) | WEP (64bit/128bit) | ||
| WPA-PSK (TKIP/AES) | |||
| WPA2-PSK(TKIP/AES) | |||
| SOFTWARE | EMP Monitor (for Windows) | Epson IP Link Projector Control (for Windows) | |
| NS Connection | For wireless connectivity (Win & Mac OSX) | ||
| OPERATING TEMPERATURE | 5°C to 35°C (41°F to 95°F) > (20%-80% Humidity ) | ||
| COOL-DOWN PERIOD | “Instant off” | ||
| START-UP PERIOD | Approx. 8.5 seconds (warm up 30 seconds) | ||
| DIRECT POWER ON | Yes | ||
| DIRECT POWER OFF | Yes | ||
| DIMENSION | |||
| EXCLUDE FEET | 250(D) x 327(W) x 95(H) mm | ||
| MAXIMUM DIMENSION | 250(D) x 327(W) x 108(H) mm | ||
| WEIGHT | Approx. 3.1kg | ||
| FAN NOISE | |||
| HIGH BRIGHTNESS MODE | 35dB | ||
| LOW BRIGHTNESS MODE | 28dB | ||
| WARRANTY | |||
| STANDARD WARRANTY | 3 years* *excluding lamp |
||
| * For more information visit Epson Projector Warranty Website | |||
| ACCESSORIES | |||
| POWER CORD | 3m | ||
| COMPUTER CABLE | 1.8m, D-sub 15pin (Male) – Mini D-sub 15pin (Male) | ||
| REMOTE CONTROL | Included | ||
| PASSWORD PROTECT STICKER | Included | ||
| AIR FILTER | Included | ||
| OWNER’S MANUAL | CD-ROM | ||
| PRODUCT OPTIONS | |||
| Product Code | Item Code | Description | |
| ELPAP03 | V12H306P11 | Wireless LAN Adapter for G Series / EB-825/825H | |
| ELPAP05 | V12H005M05 | Quick Wireless Key for EB-825/825H | |
| V13H010L50 | Lamp | ||
| 7012083 | Ceiling mount with telescopic pole | ||
| 7012084 | Ceiling mount standard | ||
| Epson is the registered trademark of Seiko Epson Corporation. Epson ESC/P2 and Epson Stylus are trademarks of Seiko Epson Corporation. MicroDot is a trademark of Epson Australia Pty Limited. All other product names and other company names used herein are for identification purposes only and may be the trademarks or registered trademarks of their respective owners. Epson disclaims any and all rights in those marks. Specifications are subject to change without notice. | |||
| Mfr No | |
|---|---|
| Dimensions | H/W/D:95x327x250 |
| Resolution | 1024×768(XGA) |
| Brightness(ANSI Lumens) | 3000 |
| Projection Lens | F=1.49-1.94,f=18.2-29.2mm |
| Zoom Ratio | 1.6:1 Power Zoom and Focus |
| Projector Technology | LCD |
| Panel Display | 0.63 |
| Aspect Ratio | 4:3 |
| Throw Distance(m) | 0.9-14 |
| Display size (Inch) | 30-300 |
| Keystone Correction | Vertical: ±30° |
| Contrast Ratio | 2000 |
| I/O |
Input
Output
|
| Light Source (Lamp) | 200W UHE |
| Lamp Life(STD/ECO)(hr) | 5000/6000 |
| Color System | NTSC/PAL/SECAM |
| Display Compatibility | |
| Speakers | 10Wx1 |
| Audible Noise | |
| Power source | 100-240V 50/60Hz |
| Power Consumption | 289W |
| Digital I/O | |
| Special Features | Quick Power Off/PC Free |
| Clearance | |
| Launch | July 2009 |
| Other | |
| Warranty | ตัวเครื่อง 2 ปี หลอดภาพ 1 ปีหรือ 1000 ชม. |
| Weight | 3.1kg |
| Wireless / Network Support | Wired Network(LAN Control Port) |
| Product Link |
