The DBR12 delivers Best-in-Class maximum output (131 dB SPL) with minimal distortion, using two separate power amplifiers designed specifically for the drivers. 800 watts for the woofer and 200 watts available for the high frequency driver combined with the latest DSP to control and protect the system assure performance and reliability in a compact package.

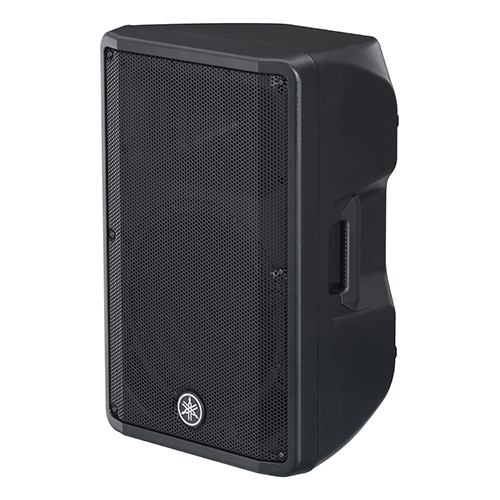

• Yamaha products. Yamaha DBR-12 Powered Speaker (1×12″) Technical Description –
• System Type: 2-way, Bi-amp Powered Speaker, Bass-reflex Type
• Frequency Range: (-10dB) 52 Hz-20 kHz
• Coverage Angle: (Horizontal x Vertical) H90″ x V60″ Constant Directivity Horn
• Measured Maximum SPL (Peak) IEC Noise@1m: 131 dB SPL
• Crossover: 2.1 kHz
• Power Rating Dynamic: 1000 W (LF: 800 W, HF: 200 W)
• Power Rating Continuous: 465 W (LF: 400 W, HF: 65 W)
• Power Consumption: 74 W
• Components LF: 12″ Cone, 2″ Voice Coil
• Components HF: 1.4″ Voice Coil, Compression Driver
• Dimensions: (W x H x D, Including Rubber Feet) 376 x 601 x 348 mm (14.8″ x 23.7″ x 13.7″)
• Net Weight: 15.8 kg (34.8 lbs)
• I/O Connectors:
• Input INPUT1: Combo x1, INPUT2: Combo x 1 + RCA-pin x 2
• Output XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix)
• Input Sensitivity: (Level: Center) INPUT1: LINE: +10 dBu, MIC: -22 dBu, INPUT2: +10 dBu
• Maximum Input Level: INPUT1: LINE: +24 dBu, MIC: -8 dBu, INPUT2: +24 dBu
