Yamaha Authorized Dealer Yamaha’s DBR powered speaker systems bring excellent sound quality, reliability, and portability in three affordable models. Using the latest DSP, engineers applied our proprietary FIR-X tuning, to optimize the sound, and protection algorithms to give the DBR series class-leading maximum output power.

DBR models are bi-amped, using a separate power amplifier for the woofer and the high frequency driver to deliver accurate, controlled performance. All the acoustic components were specifically designed to take full advantage of the power amplifiers and DSP, resulting in a very natural sound even at very high levels. With a simple switch, a DBR can easily be configured for use as a high performance floor monitor or great sounding main speaker making setup a snap. Add to this Yamaha’s 7 Year warranty and you can be assured a long life with great sound. Yamaha DBR series gives you the Power to Play.

Don’t let the small size fool you. The DBR10 can produce a class-leading 129 dB SPL of maximum output. Bi-amplified with 700 Watts of clean digital power controlled with DSP for reliable high quality performance. Great for use as a floor monitor or main speaker. A switchable HPF (high pass filter) allows easy use with a subwoofer as well.

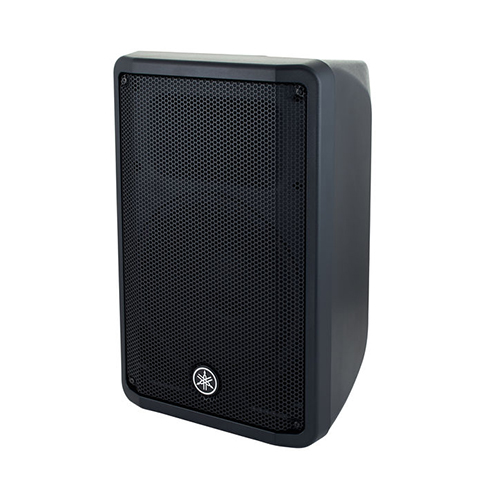

Yamaha DBR-10 Powered Speaker (1×10″)

Technical Description – System Type: 2-way, Bi-amp Powered Speaker, Bass-reflex Type

• Frequency Range: (-10dB) 55 Hz–20 kHz
• Coverage Angle: (Horizontal x Vertical) H90° x V60° Constant Directivity Horn
• Measured Maximum SPL (Peak) IEC Noise@1m: 129 dB SPL
• Crossover: 2.1 kHz
• Power Rating Dynamic: 700 W (LF: 500 W, HF: 200 W)
• Power Rating Continuous: 325 W (LF: 260 W, HF: 65 W)
• Power Consumption: 60 W
• Components LF: 10″ Cone, 2″ Voice Coil
• Components HF: 1″ Voice Coil, Compression Driver
• Dimensions: (W x H x D, Including Rubber Feet) 308 x 493 x 289 mm (12.1″ x 19.4″ x 11.4″)
• Net Weight: 10.5 kg (23.2 lbs)
• I/O Connectors:
• Input INPUT1: Combo x1, INPUT2: Combo x 1 + RCA-pin x 2
• Output XLR3-32 x 1 (CH1 Paralell Through or CH1+CH2 Mix)
• Input Sensitivity: (Level: Center) INPUT1: LINE: +10 dBu, MIC: -22 dBu, INPUT2: +10 dBu
• Maximum Input Level: INPUT1: LINE: +24 dBu, MIC: -8 dBu, INPUT2: +24 dBu
• Shipping Weights and Dimensions
• Shipping Weight: 31 lbs
• Shipping Dimensions: 23 x 16 x 15 in
