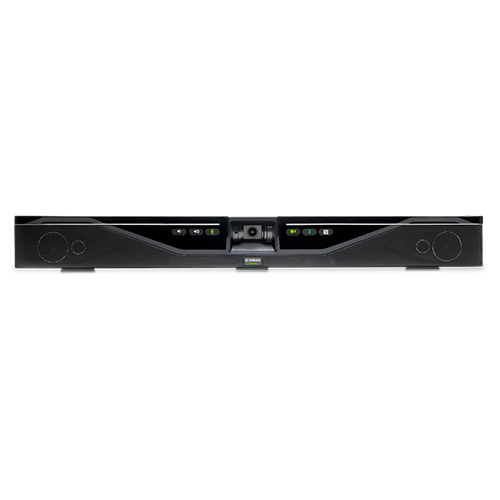

วีดีโอซาวด์บาร์  ยี่ห้อ YAMAHA รุ่น CS-700AV

AUDIO

• Speaker Bar  :  4 Speaker elements with tweeter and mid-Woofer on left and right
• Speaker Frequency Response   :   160 – 20,000 Hz
• Max SPL  :  90 dB at 1 M
• Microphones   :   4 microphone beamforming array
• Microphone Coverage   :  180 degrees audio pickup
• Microphone Frequency Response  :  160 – 16,000 Hz
• Full Duplex Audio   :  Yes
• Echo Cancellation  :  Ultra wideband AEC
• LED indicator   :  Mute/unmute

SIP

• Call Handling   :  Make, Answer, Hold, Resume, Transfer (Blind and Supervised), Forwarding, Do not disturb, Redial, Call Timer, Call ID, Speed Dial, Missed Call Notifications, Voice Mail Notifications (switch configured)
• Call Bridging  :  Supports Bridging SIP and USB Calls. Join, Split, Hold, Resume, 3+1 Lines: Up to 2 SIP calls, 1 USB call, plus the user
• Codecs  :  G.711 (A-law and μ-law), G.722, G.726, G.729
• DTMF Support  :  RTP event, SIP in-band, SIP info package
• Security   :  SRTP/SRTCP Support (RFC 1889), IETF SIP support (RFC 3261 and companion RFCs), SSIP, Password protected configuration files, Password protected login
• Network & Provisioning   :   DHCP or Static IP, Server Based Central Provisioning, Web Portal for Individual Unit Configuration

INTERFACES

• Mount  :  Wall Mount Bracket for above or below display mounting
• Connector   :  USB with strain relief
• USB Host Port  :  Audio, video and HID supported over USB 2.0 and 3.0/3.1
• Ethernet  :  RJ 45
• Bluetooth®  :  Audio Only

CAMERA

• Camera Sensor  :  High Definition CMOS
• Privacy   :  Digital video mute
• LED Indicators   :  Camera Operational LED
• UVC Support   :  UVC 1.5
• Field of View  :  120 degrees

COMPLIANCE

• Safety  :  IEC60065, IEC60950, IEC62368
• EMC  :   CISPR13/CISPR22/CISPR32/FCC/J55013/ETSI EN 300 328 /ETSI EN 302 291-2 /ETSI EN 300 330-2 EN55024/CISPR24 or 35 and ETSI EN 301 489-1
• Environmental  :  RoHS, Reach, WEEE

WARRANTY

• Global except for EU European  :  1 Year return to factory 2 Year return to factory

SIZE, WEIGHT, POWER

• Height  :  3.9in/98.75mm
• Length  :  2.7in/68.5mm
• Width  :  34.in/861.7mm
• Weight (incl. bracket)  :  7.3 lbs/3.3kg
• Input Voltage  :  100-240 VAC
• Input Current  :  1A
• Input Frequency  :  50-60 Hz
• Power Consumption  :  36W
• Power Cord Length   :  10ft/3m – Please order correct SKU for regional power cord requirements
