CDE5530

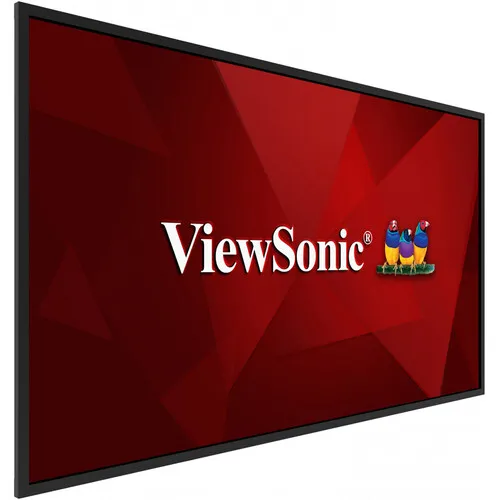

จออินเตอร์แอคทีฟ  ยี่ห้อ ViewSonic รุ่น CDE5530

• Wireless presentation for enhanced efficiency ​
• Single USB-C cable for 65W power delivery
• 24/7 video playback for continuous communication
• Remote device management with myViewBoard Manager ​
• ProAV compatibility with Crestron, Extron, and AMX​
• Portrait-oriented display for impactful brand signage

1. Power Switch
2. AC IN
3. SPDIF
4. LAN
5. USB 2.0
6. USB 3.0
7. RS-232
8. HDMI OUT
9. HDMI 2
10. HDMI (ARC)
11. USB-C
12. Control Panel
13. Speaker
14. WiFi Slot
15. VESA® Wall Mount (400x200mm)

SPECIFICATIONS

Display

• Panel Size: 55″
• Type/ Tech: TFT LCD Module. VA type, DLED backlight
• Display Area (mm): 1209.6 (H) × 680.4 (V) (54.64” diagonal)
• Native Resolution: 3840 x 2160
• Aspect Ratio: 16:9
• Colors: 1.07G (8bits + FRC-)
• Brightness: 450 nits (typ.)
• Contrast Ratio: 1200:1 (typ.), 5000:1 (DCR enabled)
• Response Time: 6.5ms
• Viewing Angles: H = 178, V = 178 typ.
• Backlight Life: 50,000 hours
• Surface Treatment: Anti-Glaire, 3H hardness, Haze 25%
• Bezel: 9.9/9.9/9.9/9.9 mm (L/R/T/B)
• Orientation: Landscape & Portrait

Platform

• Processor: Quad-core ARM Cortex A55
• RAM: 4GB
• Storage: 32GB

INPUT

• HDMI: 2.1×2 ( 3840×2160 @60Hz, HDMI 1 supports ARC)
• RS-232: x 1
• WiFi Slot: x 1

OUTPUT

• HDMI: 2.0 x1 ( 3840×2160 @60Hz )
• SPDIF: x 1

LAN

• RJ45: x 1

USB

• Type A: 2.0 x 1, 3.0 x 1
• Type C: x1 ( (DP1.2, PD 65W, USB2.0, 100M ethernet)

SPEAKERS

• 10W x2

Embedded OS

• Android 11

POWER

• Voltage: 100-240 VAC +/- 10%
• Consumption: 82 W(typ.) < 0.5W(off)

OPERATING CONDITIONS

• Temperature (º C): 0 to 40℃
• Humidity: 10%-90% RH

Operating Hours

• 7/24

DIMENSIONS (W x H x D)

• Physical (inch / mm): 48.54 x 27.70 x 2.81in/ 1233 x 703.5 x 71.5mm
• Packaging (inch / mm): 52.44 x 32.24 x 6.14 in./1332 x 819 x 156 mm

WEIGHT

• Net (lb / kg): 29.54 lbs/13.4 kg
• Gross (lb / kg): 42.99 lbs/19.5 kg

REGULATIONS

• cTUVus, FCC/ICES003, Energy star 8.0, EPEAT, Mexico NOM , Mexico Energy, EMC/CE , CB, EAC, UkrSEPRO, RCM, LBL, Flicker free, Green BOM, RoHS , ErP, REACH, SCIP, WEEE , Annex I, Annex II, TPCH , Packing waste, CA65

PACKAGE CONTENTS

1. Remote Control with batteries
2. Quick Start Guide
3. Power Cables
4. HDMI cable
5. USB-C cable
6. Wall Mount Screw x 4
7. RS232 adapter
8. Compliance statement
