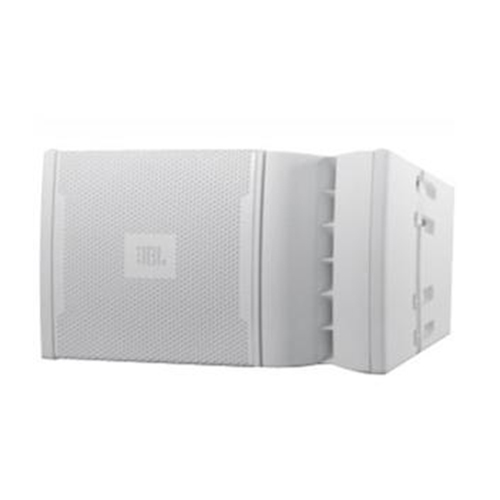

ตู้ลำโพง ยี่ห้อ JBL รุ่น VRX932LA-1WH
12 in. Two-Way Line Array Loudspeaker System
The VRX932LA-1 is a light-weight (46 lb / 21 kg) compact 12″ two-way line array speaker system designed for use in arrays of up to six units.
Specifications
- Power Rating : 800 W / 1600 W / 3200 W
- Frequency Range (-10dB) : 57 Hz – 20 kHz
- Dimensions (H x W x D) : 343mm x 597mm x 376mm (13.5in x 23.5in x 14.8in)
- Frequency Response (±3 dB) : 75 Hz – 20 Hz
- Coverage Pattern : 100 x 15 nominal
- Crossover Modes : Bi-amp / passive, externally switchable
- Crossover Frequency : 132 dB SPL peak 1.2 kHz
- Maximum SPL (1m) : 130 dB SPL peak (passive mode) LF: 130 dB HF: 139 dB
- Sensitivity : Passive: 95 dB SPL Bi-amp LF: 95 dB SPL Bi-amp HF: 114 dB SPL
- LF Driver : 1 x JBL 2262H 305 mm (12 in) Differential Drive® woofer with neodymium magnet, dual voice-coils, and dual magnetic gaps.
- HF Driver : 3 x JBL 2408J, 38 mm (1.5 in) voice-coil, neodymium compression driver
- Nominal Impedance : Passive = 8 ohm / Bi-amp LF = 8 ohm / Bi-amp HF = 8 ohm
- Active Tunings : Tunings available at www.jblpro.com
- Enclosure : 18 mm, 11-ply birch plywood
- Suspension / Mounting : Optional VRX932LA-AF line array frame kit
- Finish : Black DuraFlex™ finish
- Grille : Power coated, black, 16-guage perforated steel with with acoustically transparent foam
- Inputs : Neutrik® Speakon® NL-4 (x2)
- Net Weight (each) : 21 kg (46 lb)
- Optional Accessories : VRX932LA-AF: Suspension array frame SS2-BK: Tripod speaker stand SS3-BK: Satellite speaker pole,41 in (1041 mm) SS4-BK: Adjustable satellite speaker pole to be used with the SRX718S only
- Outputs : 1 x XLR
- System Type : Constant Curvature 12″ Two-Way Line Array System
