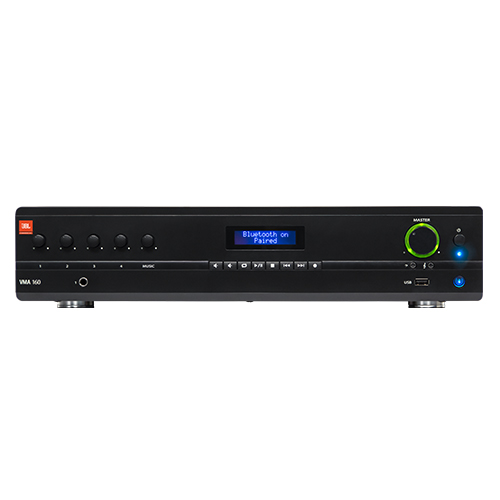

The JBL VMA160 is a Commercial Series Bluetooth-enabled mixer/amplifier designed to provide flexible multi-source mixing and amplification for installation in restaurants, educational institutions, fitness centers, and retail stores. It features a 5-in/1-out mixer and 60W of output power. It can be installed in a standard 19” equipment rack with the supplied rackmount kit or set on a surface such as a desk or ledge.

Stream music wirelessly via Bluetooth or connect a USB drive to the front-panel USB Type-A port. Route other sources via Euroblock, RCA, and 1/4″ input jacks. The integrated mixer offers level controls as well as bass and treble for each channel. Routing to the Euroblock outputs is configurable. The VMA160 supports voice-activated ducking and priority muting. The front-panel controls and display make operation easy, and remote volume control is possible via a JBL CSR-V module and a standard Ethernet cable (both available separately).

• Suitable for commercial and industrial use
• Euroblock, RCA, and 1/4″ TRS input connectors
• Independent bass and treble controls for each output channel
• Voice-activated ducking during announcements
• Remote volume control capability using optional JBL CSR-V module and Cat5e cable with RJ45 connectors
• Priority muting using PTT switch closure
• Configurable output routing
• Barrier block output connections to drive 8 Ohms, 70V or 100V speaker systems
• Media player capable of playing MP3 files from a Bluetooth device or USB drive

Specification

Amplifier

• Form Factor/Type  : Tabletop
• Number of Channels   : 5 Input / 1 Output
• Power Rating  : 4 Ohms / 8 Ohms: / 60 W per Channel (1 kHz, 0.5% THD)
• Load Impedance / Voltage : 4 Ohms (Minimum) / 70 V (80 Ohms Minimum) / 100 V (160 Ohms Minimum)

Performance

• Frequency Response  : 20 Hz to 20 kHz ±2 dB (Low-Z)  / 80 Hz to 15 kHz ±3 dB (70/100 V)
• Input Sensitivity  : Mic: 5.5 mVrms / Line: 1.3 Vrms / Stereo RCA: 130 mVrms
• I/O Impedance  : Mic Input: 400 Ohms  / Line Input: 20 Kilohms (Balanced)  / RCA Input: 50 Kilohms
• Insertion Loss  : 1 dB Maximum
• SNR      :  > 76 dB (at Rated Power, A-Weighted)
• THD     :  < 0.5% (20 Hz to 20 kHz)
• Crosstalk  : -70 dB (at Rated Power, Mid Gain, 1 kHz)

Signal Processing

• EQ  : 2-Band per Channel: Bass: ±14 dB at 50 Hz / Treble: ±14 dB at 10 kHz

Connectivity

• Phantom Power  : 27 VDC

Power

• AC Input Power  : 100 VAC, 50 / 60 Hz   ,  120 VAC, 50 / 60 Hz  ,  220 VAC, 50 / 60 Hz  ,  220 to 240 VAC, 50 / 60 Hz

Physical

• Operating Temperature  : 32 to 95°F / 0 to 35°C
• Storage Temperature :  -4 to 185°F / -20 to 85°C
• Operating Humidity  : 0 to 95% (Non-Condensing)
• Dimensions  : 17.0 x 3.5 x 16.3″ / 432.0 x 88.0 x 415.0 mm
• Weight :  19.4 lb / 8.8 kg

Packaging Info

• Package Weight  : 24 lb
• Box Dimensions (LxWxH)  : 21 x 20.5 x 6.5″
