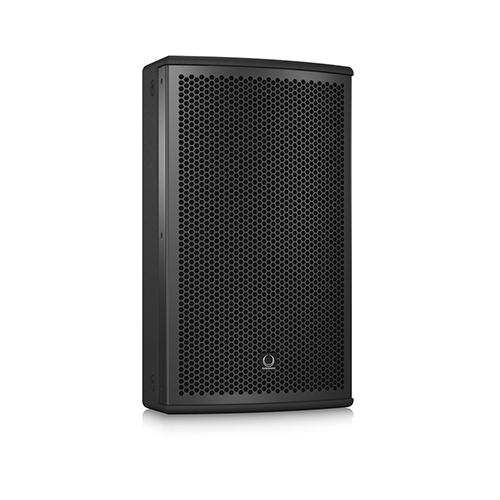

ตู้ลำโพง ยี่ห้อ Turbosound รุ่น TURBOSOUND NUQ82
Features
- 2 way full range loudspeaker for portable PA and installation applications
- 250 Watts continuous, 1,000 Watts peak power
- Ideal for FOH, side fill and monitor applications
- 8″ low frequency driver with low mass voice coil for improved transient response
- Aluminium dome 1″ neodymium motor compression driver
- Switchable passive/bi-amp operation for flexibility of use
- Rotatable converging elliptical waveguide provides 100? H x 60? V dispersion
- 12 mm (1/2″) birch plywood enclosure with hard wearing semi matt black paint finish
- Rugged powder coated perforated steel mesh grille
- Integral 35 mm pole mount and handles
- Multiple internal rigging points allow bracket mount and suspension in any orientation
- Neutrik speakON* NL4 connectors for reliable long life operation
- 10-Year Warranty Program*
- Designed and engineered in the U.K.
Specification
System
| Frequency Response | 65 Hz – 18 kHz ±3 dB 55 Hz – 20 kHz -10 dB |
| Nominal Dispersion | 100° H x 60° V @ -6 dB points, rotatable |
| Directivity Factor (Q) | 8 |
| Directivity Index (DI) | 9 |
| Power Handling (IEC) | |
| Sensitivity | 93 dB (1 W @ 1 m) |
| Maximum SPL | |
| Impedance | |
| Crossover Type | Passive / Bi-amp switchable |
| Components | 1 x 8″ (211 mm) LF Driver 1 x 1″ (25 mm) HF Compression Driver |
Enclosure
| Connectors | 2 x Neutrik speakON* NL4 |
| Wiring | |
| Dimensions (H x W x D) | 464 x 274 x 220 mm (18.3 x 10.7 x 8.7″) |
| Net Weight | 10.2 kg (22.4 lbs) |
| Construction | 12 mm (½”) birch plywood |
| Finish | Semi matt black paint |
| Grille | Powder-coated perforated steel |
| Flying Hardware | M10 x 8 points; M8 x 3 points |
Accessories
| NuQ82-SB NuQ82-EB NuQ82-FY |
