In dialogue or monologue. Song or speech. A single word can affect the whole story. Through sweat, noise, and wear and tear, your little lavalier has an enormous job to do. Shure TwinPlex stands up to the toughest conditions to make every word a clear statement of quality. Natural audio at high or low frequency, the innovative dual-diaphragm captures the complete weight of your voice. And the capsule design maximizes effective surface area in an easy-to-conceal package. So sound suits performer, not the other way around.

Indoor or outdoor. Inclement conditions won’t hold production back. The fixed frequency cap features an internal hydrophobic woven lining that resists sweat and moisture. And the medical-grade cable technology flexes to fit the costume design and the demanding schedule. So your lavalier rises to the challenge, night after night.

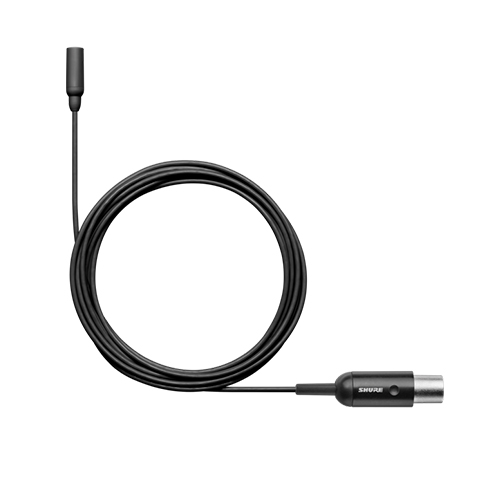

The TwinPlex™ TL48 offers a tailored response with a mid-range rise that’s ideal for speech and dialogue applications, such as film and TV. Designed with leading audio professionals’ input, the TL48 is easily concealed in a costume or directly against the skin under wardrobe, and offers extensive accessories to ensure quick, easy, and secure mounting—all with no impact on sound quality.

Features

• The TL45 is ideal for use in theater settings
• Twice the surface area of other subminiature microphones for pristine, natural response and robust low-frequency response due to the patent pending dual-diaphragm design
• Improved off-axis consistency yields accurate reproduction regardless of vocal source position or movement
• Best-in-class low self-noise and dynamic range for cleaner audio production
• Interchangeable sweat- and moisture-resistant frequency caps prevent sweat-outs due to an invisible superhydrophobic nanoscopic coating
• Paintable 1.1 mm cable that is immune to memory effect and kinks
• A single medical-grade spiraling conductor in the cable delivers increased flexibility while built-in reinforcing fibers offer additional cable strength for longevity
• Sound signature: Natural
• Sensitivity: Low
• Colors: Black, Cocoa, Tan, White
• Connectors: LEMO
• Accessories: Available separately

Specifications

• Microphone Capsule  :   Dual-Diaphragm, Prepolarized Condenser
• Polar Pattern   :  Omnidirectional
• Frequency Response   :  20 Hz to 20 kHz
• Sensitivity at 1 kHz   :  -45.0 dBV (5.62 mV)
• Self-Noise, A-Weighted, Equivalent Acoustical   :  24.5 dB SPL-A
• Signal-To-Noise Ratio  :  69.5 dB
• Output Clipping Level  : 3.0 dBV,1 kHz at 1% THD, typical
• Maximum SPL  :  142.0 dB SPL 1 kHz at 1% THD, typical
• Dynamic Range  :  117.5 dB typical
• Microphone Current Draw   :  120 to 240 µA, typical
• Bias Voltage Recommended Operating Voltage  :   5 VDC
• Housing   :  Molded ABS
• Polarity   :  Positive pressure at diaphragm leads to negative voltage with respect to ground
• Cable Diameter   :  1.1 mm
• Cable Length   :  66 in. (1.67 m)
• Microphone Length   :  13.5 mm
• Microphone Diameter   :  5.6 mm
• Net Weight with Cable  :   12.0 g (0.42 oz.)
