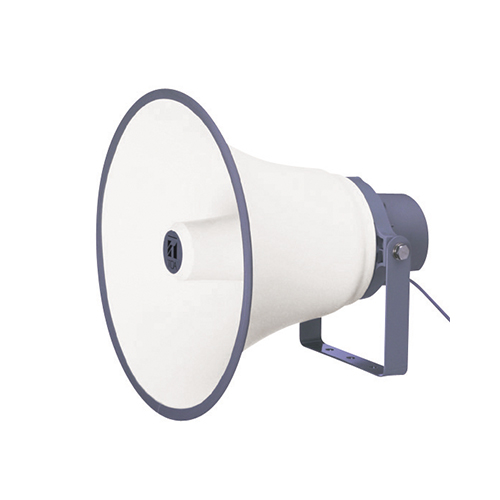

The TC-615 is a highly intelligible, general-purpose speaker suited to public address announcement applications. Its external speaker component finished with powder coating, and stainless steel screws ensure the unit’s weatherproof capability.

Specification

• Rated Input : 15 W
• Rated Impedance : 8 Ω
• Sound Pressure Level : 108 dB (1 W, 1m)
• Frequency Response : 250 Hz – 7 kHz
• Dust/Water Protection : IP65
• Polarity :  Hot: Black, Com: White
• Operating Temperature                : -20 ℃ to +55 ℃ (must be free from dew condensation)
• Finish :

Horn flare: Aluminum, off-white, powder coating

Reflector horn: ABS resin, off-white

Bracket holder: Aluminum, gray, powder coating

Bracket: Steel, gray, powder coating

Rear cover: ABS resin, gray

Screw and bolts: Stainless steel

Speaker Cable: Polyvinyl chloride insulated cabtyre cable

(6 mm in diameter, 600 mm in length)

• Dimensions : φ400 × 376 (D) mm
• Weight : 3 kg
