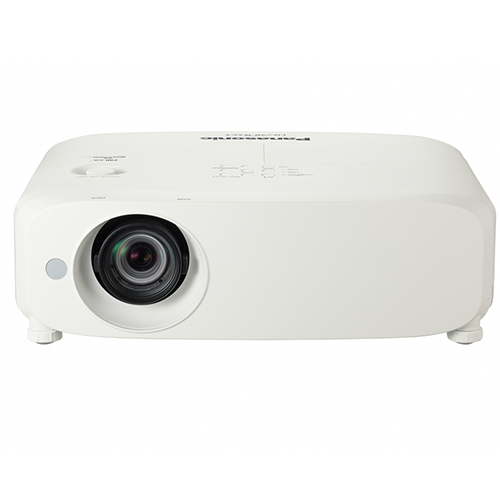

โปรเจคเตอร์ ยี่ห้อ PANASONIC รุ่น PT-VZ470
- ความสว่าง: 4,400 ANSI Lumens
- ความละเอียด: 1920 x 1200 pixels
- ค่า Contrast: 10,000:1
- การรับประกันตัวเครื่อง 2 ปี หลอดภาพ 1 ปีหรือ 1000 ชม.
| Power supply | AC120 V, 50/60 Hz (North America), AC110 V, 60 Hz (Taiwan), AC100-240 V, 50/60 Hz (other countries) |
|
| Power consumption | 372 W (North America), 378 W (Taiwan), 378 W (other countries) |
|
| Standby power consumption |
Standby Mode (Eco) *2 | 0.2 W (North America), 0.2 W (Taiwan), 0.4 W (other countries) |
| Standby Mode (Normal) | 8 W | |
| LCD panel | Panel size | 16.3 mm (0.64 in) (16:10 aspect ratio) |
| Display method | Transparent LCD panel (x 3, R/G/B) | |
| Pixels | 2,304,000 (1,920 x 1,200) x 3, total of 6,912,000 pixels | |
| Lens | 1.6x manual zoom (throw ratio: 1.1-1.8:1), manual focus, F 1.60-2.12, f 15.30-24.64 mm |
|
| Lamp | 270 W x 1, lamp replacement cycle (lamp power: Normal/Eco): 5,000 hours/7,000 hours*3 |
|
| Screen size (diagonal) | 0.76-7.62 m (30-300 in), 16:10 aspect ratio | |
| Brightness*4 | 4,400 lm (input signals: PC, lamp power: Normal, picture mode: Dynamic) | |
| Center-to-corner uniformity*4 | 85 % | |
| Contrast*4 | 10,000:1 (full on/off) (input signals: PC, lamp power: Normal, picture mode: Dynamic, iris: On) |
|
| Resolution | 1,920 x 1,200 pixels*5 | |
| Scanning frequency | HDMI/ DIGITAL LINK |
525i (480i)*4, 625i (576i)*6, 525p (480p), 625p (576p), 750 (720)/60p, 750 (720)/50p, 1125 (1080)/24p, 1125 (1080)/24sF, 1125 (1080)/25p, 1125 (1080)/30p, 1125 (1080)/60p, 1125 (1080)/50p, 1125 (1080)/60i, 1125 (1080)/50i, Displayable resolution: 640 x 400 to WUXGA (non-interlace), Dot clock frequency: 25 MHz to 162 MHz (compatible with HDCP, DIGITAL LINK not included on PT-VZ570) |
| RGB (analog) | fH: 15-91 kHz, fV: 24-100 Hz, dot clock: 162 MHz or lower | |
| YPBPR (YCBCR) | fH: 15.73 kHz, fV: 59.94 Hz [480i (525i)], fH: 31.47 kHz, fV: 59.94 Hz [480p (525p)], fH: 45.00 kHz, fV: 60 Hz [720 (750)/60p], fH: 33.75 kHz, fV: 60 Hz [1080 (1125)/60i], fH: 28.13 kHz, fV: 25 Hz [1080 (1125)/25p], fH: 27.00 kHz, fV: 48 Hz [1080 (1125)/24sF], fH: 67.50 kHz, fV: 60 Hz [1080 (1125)/60p], fH: 15.63 kHz, fV: 50 Hz [576i (625i)], fH: 31.25 kHz, fV: 50 Hz [576p (625p)], fH: 37.50 kHz, fV: 50 Hz [720 (750)/50p], fH: 28.13 kHz, fV: 50 Hz [1080 (1125)/50i], fH: 27.00 kHz, fV: 24 Hz [1080 (1125)/24p], fH: 33.75 kHz, fV: 30 Hz [1080 (1125)/30p], fH: 56.25 kHz, fV: 50 Hz [1080 (1125)/50p] |
|
| Video/S-Video | fH: 15.73 kHz, fV: 59.94 Hz [NTSC / NTSC4.43 / PAL-M / PAL60], fH: 15.63 kHz, fV: 50 Hz [PAL / PAL-N / SECAM] |
|
| Optical axis shift | Vertical: +44 %, U/D ratio on top end: 17:1 | |
| Keystone correction range | Vertical: ±25° (auto/manual, input: WUXGA), horizontal: ±30° (manual, input: WUXGA) |
|
| Installation | Ceiling/floor, front/rear | |
| Terminals | HDMI IN | HDMI 19-pin x 2 (compatible with HDCP), audio signal: linear PCM (sampling frequencies: 48 kHz, 44.1 kHz, 32 kHz) |
| COMPUTER 1 IN | D-sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR/YC x 1) | |
| COMPUTER 2 IN / MONITOR OUT |
D-sub HD 15-pin (female) x 1 (RGB x 1), (input/output selectable using on-screen menu) | |
| VIDEO IN | Pin jack x 1 (Composite VIDEO) | |
| AUDIO 1 IN | M3 x 1 (L-R x 1) | |
| AUDIO 2 IN (MIC IN) |
M3 x 1 (L-R x 1) for audio input or for microphone connection (variable) | |
| AUDIO 3 IN | Pin jack x 2 (L, R x 1) | |
| AUDIO OUT | M3 x 1 (L-R x 1) for output (variable) | |
| SERIAL IN | D-sub 9-pin (female) x 1 for external control (RS-232C compliant) | |
| USB A | — | |
| USB B | — | |
| LAN/ DIGITAL LINK |
RJ-45 x 1 (for network connection, 10Base-T, 100Base-TX, compliant with PJLink™ |
|
| Built-in speaker | 4 cm round shape x 1, output power: 10 W (monaural) | |
| Noise level*4 | 37 dB (lamp power: Normal), 29 dB (lamp power: Eco) | |
| Cabinet materials | Molded plastic | |
| Dimensions (W x H x D) | 389 x 125.0*7 x 332 mm (15-5/16 x 4-29/32*7 x 13-1/16 in) | |
| Weight*8 | Approx. 4.8 kg (10.6 lbs) | |
| Operating temperature | 0°C-40°C [32°F-104°F] (less than 1,200 m [3,937 ft] above sea level), 0°C-30°C [32°F-86°F] (between 1,200 m and 2,700 m [3,937 ft and 8,858 ft] above sea level)*9 |
|
| Operating humidity | 20-80 % (no condensation) | |
| Supplied accessories | Power cord with power cord holder x 1*12, wireless remote control unit x 1, batteries (AAA/R03/LR03 type x 2), computer cable x 1, Software CD-ROM (Logo Transfer Software, Multi Projector Monitoring & Control Software) |
|
