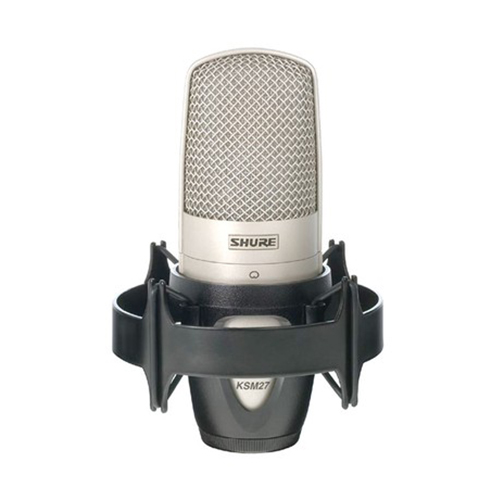

The Shure KSM 27/SL is a studio condenser microphone intended for general studio recording of vocals, instruments and ambiance as well as live sound reinforcement applications. The microphone features a side-address cardioid condenser element, providing a focused pick up while minimizing ambiance and noise at the off-axis sections of the microphone. Cardioid patterns are particularly useful while capturing in close proximity to monitors and noisy environments.

The 1 inch, externally biased, 24 Karat gold-layered Mylar diaphragm provides a smooth frequency response and warm sonic presence. The transformer-less output design and Class A circuitry result in a high output signal and low noise floor. A 3-position low-frequency roll-off switch eliminates hum and noise at low frequencies and an internal three stage “pop” grille reduces plosive and breath noises.

Cardioid Polar-Pattern

The KSM 27/SL features a cardioid pick-up pattern which is effective in minimizing off-axis noise and ambiance. Also particularly suitable for eliminating feed back caused by monitors.

Class A Circuitry

The Class A circuitry and transformer-less design result in high level output signal while maintaining a low noise floor.

Low Frequency Roll-Off

A 3-position low frequency roll-off switch eliminates low frequency rumble and noise.

15 dB Pad Switch

A 15dB Pad switch gives the KSM 27/SL even higher Sound Pressure Level capability, allowing close placement of loud sources such as drums, electric guitar, percussion etc.

Internal Shock-Mounting

The internal shock mounting design protects the element from damage and reduces noise caused by handling

Specification

• Transducer  :  Externally Biased Condenser
• Polar Pattern   :   Cardioid
• Frequency Response   :   20Hz to 20,000Hz
• Dynamic Range (Typical)   :  2500 ohm load: 124dB  /  1000 ohm load: 119dB
• Signal-to-Noise Ratio  :  81dB
• Maximum Input Sound Level   :  2500 ohm load: 138 (153)dB  /  1000 ohm load: 133(148)dB
• Power Requirements  : +48 Vdc Phantom Power +/- 4 Vdc (IEC-268-15/DIN 45 596), positive pins 2 and 3
• Output Impedance  :  150 ohms (actual)
• Output Connectors   :  Balanced XLR male
• Pad   :  15dB Pad
• Low Frequency Roll-Off :  flat; -6 dB/octave below 115Hz; -18dB/octave below 80Hz
• Dimensions   :  6.161 x 2.085″ (156.24 x 52.96mm)(H x Diameter)
• Weight :  17.3 oz (490 g)
