IFP6533-G

จออินเตอร์แอคทีฟ ยี่ห้อ ViewSonic รุ่น IFP5550

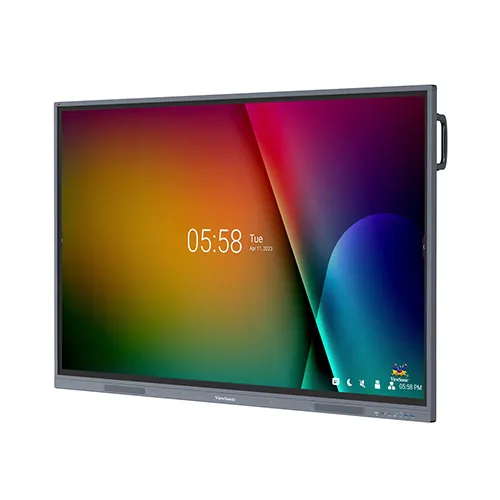

ViewBoard® 65″ 4K Interactive Display

• Multi-tasking capabilities for enhanced lesson delivery
• Embrace simplicity and organization with the USB-C one-cable solution, offering 65W of Power Delivery.
• Intuitive user interface and fast app launch for smooth operation
• Powered by Android 11

1. POWER ON/OFF
2. USB C
3. HDMI 1
4. TOUCH 1
5. USB 3.0×2
6. OPS Slot
7. RS-232
8. LAN
9. USB 2.0×2
10. TOUCH 2
11. HDMI 2
12. HDMI 3
13. HDMI OUT
14. USB
15. VESA® Wall Mount (600x400mm)
16. SPDIF
17. AUDIO in
18. AUDIO out
19. VGA
20. Power On/OFF
21. AC IN
22. Wi-Fi Slot
23. Sensor Mount

SPECIFICATIONS

• Display
  Panel Size: 65″
  Panel Type: TFT LCD Module with DLED Backlight. IPS
  Display Area (mm): 1428.48(H) × 803.52(V) (64.5” diagonal)
  Aspect Ratio: 16:9
  Resolution: UHD 3840×2160(Pixels)
  Colors: 1.07B colors
  Brightness: 350 nits
  Contrast Ratio: 5000:1 (max. with DCR enabled)
  Response Time: 8ms
  Viewing Angles: H=178, V=178
  Backlight Life: 50,000 Hours (8 hours of use per day)
  Surface Treatment: Hardness: 7H Anti-glare coating
  Orientation: Landscape
• Platform
  Processor: Quad-core ARM Cortex (A55*4 )
  RAM: 8GB DDR4
  Storage: 128 GB
• Touch
  Type/ Tech: Ultra Fine Touch Technology
  Touch Point: 40 points touch

• INPUT
  HDMI: HDMI-IN 2.0 x 3 (3840×2160 @60Hz)
  RGB / VGA: x1
  Audio: x1
  RS232: x1
  OPS: x1 (Optional Intel Standard OPS)
  WiFi: x1 (Optional VB-WIFI-002/VB-WIFI-004/VSB-050)
• OUTPUT
  HDMI: HDMI 2.0 x1
  Audio: x1
  SPDIF: x1
• LAN
  RJ45: x2
• USB
  Type A: USB3.0:Front x2, Rear x2；
  USB2.0 x1
  Type B: x2 (Rear x1 + Front x1)
  Type C: Front*1 (PD65W + DP1.2 + Data USB2.0 + 10M/100M sharing)
• SPEAKERS
  16W x 2
• Top Camera Plate
  Yes
• Embedded OS
  Android 11
• Bundle Software
  Basic Annotation Software: myViewBoard Whiteboard
  Pro Annotation Software: myViewBoard for Windows (Embedded in optional Windows Slot-in PC)
  Wireless Presentation: myViewBoard Display
  Wireless Presentation with Touch Feedback: Viewboard Cast: Yes
• Special Features
  All-in-one USB port: (combine slot-in PC/Android/HDMI USB port) Front “SmartPort™ USB” to all channels.
  Simple LAN sharing between IFP and slot-in device: 10/100M for Android & Slot-in PC
  Light Sensor: Yes
• Power
  Voltage: 100-240V AC
  Consumption: On:99W ; Off: ≤ 0.5W
• ERGONOMICS
  Wall Mount (VESA® ): 600*400
• OPERATING CONDITIONS
  Temperature (º C): 0°C to 40°C
  Humidity: 20% ~ 80% RH non-condensing
• DIMENSIONS (W x H x D)
  Physical (inch / mm): 1488 x 897 x 88 mm / 58.6 x 35.3 x 3.5 in
  Packaging (inch / mm): 1628x1005x208 mm / 64.1x 39.6x 8.2in
• WEIGHT
  Net (lb / kg): 77.1lb/34.95kg
  Gross (lb / kg): 98.5 lb/44.7kg
• REGULATIONS
  FCC/ICES003, EPEAT, CE EMC, LVD or CB, RoHS Green BOM, & RoHS DoC, ErP, REACH SVHC List, & DoC, EEL, WEEE, BSMI,BIS
• PACKAGE CONTENTS
  1. 3m power cord by ship area 2. Remote control with AAA battery 3. 3m touch USB cable 4. Touch pen x 2 (VB-PEN-009) 5. Quick Start Guide + Compliance statement 6. RS232 adapter 7. Clamp x 5 8. Camera Plate 9. Screw x 8 (camera 2+2, wall mount 4) 10. HDMI cable 3m
• Compatible Slot-in PC
  VPC2-O series/VPC2-O-1B series/VPC12-WPO-15/16
