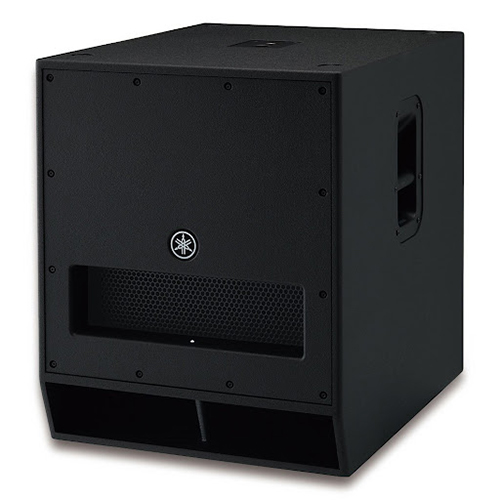

ตู้ลำโพง ยี่ห้อ YAMAHA รุ่น DXS18
The new DXS 18 achieves best in class SPL of up to 136dB and delivers the lowest frequency 32Hz in the lineup. Equipped with a band-pass type enclosure and high power handling 4-inch voice coil magnet that drives the 18-inch woofer, the Class-D amplifier delivers 1020W of power with exceptional clarity and accuracy
- General specifications
- Speaker type 18″ Powered subwoofer, Band-pass type
- Frequency range (-10dB) 32Hz – 120Hz
- Components LF 18″ cone, Voice Coil:4″
- Maximum output level (1m; on axis) 136dB SPL
- I/O connectors INPUT: XLR3-31 x2 , THRU: XLR-3-32 x 2(THROUGH or HPF POST)
- Processors D-XSUB: BOOST, XTD LF, NORMAL
- Cooling Natural convection
- Power requirements 100V – 240V, 50Hz/60Hz
- Power consumption 100W
- Pole socket 35 mm (depth 80 mm) & M20 (threaded depth 25 mm)
- Dimensions W 563mm (22.2″) H 683mm (26.8″) D 721mm (28.4″)
- Net weight 49.7kg (110lbs)
- Others Material, Finish, Color: Meranti Plywood, Durable Polyurea Coating, Black
- ข้อมูลจำเพาะทั่วไป
- วัตต์ Dynamic:1020W / Continuous: 800W
