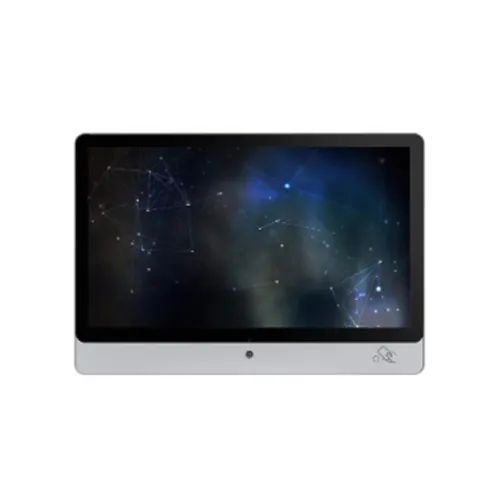

Digital sinage ยี่ห้อ  Hikvision  รุ่น DS-D6122TH-D/C

Display

• Viewing Angle178°(H)/178°(V)
• Screen Size21.5 inch
• Active Display Area478.66 (H) mm × 260.28 (V) mm
• BacklightELED
• Pixel Pitch0.241 (H) mm × 0.241 (V) mm
• Resolution1920 × 1080
• Brightness600 cd/m²
• Color Depth8 bit, 16.7 M
• Contrast Ratio1000:1
• Response Time8 ms
• Color Gamut72% NTSC
• Reliability7 × 16 h

Smart

• Lens2 MP WDR Camera
• Face Database50,000 pictures, JPG format allowed
• Face Detection Distance

  Up to 5 m (196.86”)

  0.3 m to 1.5 m (11.81” to 59.06”) recommended

  Adjustable through software

Face Verification Accuracy＞99%

• Face Verification Time≤ 0.5 s/person

Touch

• Touch TypeCapacitive touch
• Glass3 mm anti-glare toughened glass
• Touch Point10

Built-in System

• Operation SystemAndroid 12.0
• CPUCortex-A55，4 Cores, 1.8 GHz
• Memory2 GB
• Built-in Storage16 GB EMMC

Internal Function

• Loudspeaker8 Ω，3 W × 2

Interface

• Network InterfaceLAN × 1, built-in Wi-Fi
• Data Transmission InterfaceUSB 2.0 × 2, BT 4.0 × 1, Card-swiping for IC card, Access control linkage

Power

• Standby Consumption≤ 0.5 W
• Power Consumption≤ 60 W

• Working Environment
• Working Temperature0 ℃ to 40 ℃ (30 ℉ to 104 ℉)
• Working Humidity10% to 90% RH (without condensation)

General

• Power Supply24 VDC, 2.5 A
• Gross Weight8.21 kg
• Net Weight6.54 kg
• Package Dimensions (W × H × D)662 (W) mm × 530 (H) mm × 110 (D) mm (26.1 ” × 20.9 ” × 4.3 ”)
• Packing ListPower adapter × 1, access control linkage line × 1, quick start guide × 1, screw kit × 1, L-type ring spanner × 1, dust-proof bag × 1, intelligent cloud digital signage paper card × 1, power cord × 1
• Product Dimensions (W × H × D)

  With base: 514.06 (W) mm × 383.79 (H) mm × 28 (D) mm (20.24” ×15.11” × 1.1”)

  Without base: 514.06 (W) mm × 383.79 (H) mm × 26.6 (D) mm (20.24” × 15.11” × 1.06”)
