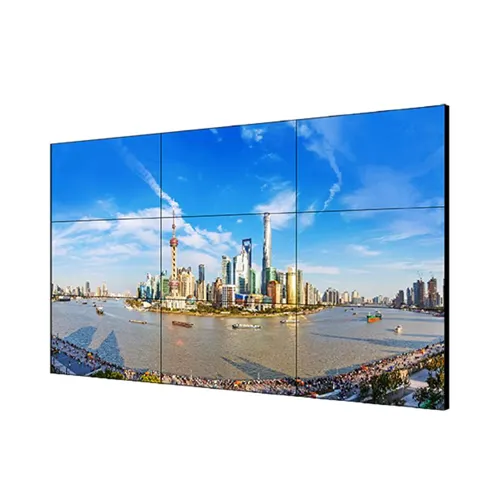

Video Wall ยี่ห้อ Hikvision รุ่น DS-D2046EL-0A

Display

• Screen Size46 inch
• Active Display Area1018.08 (H) mm × 572.67 (V) mm
• BacklightDirect-lit LED backlight
• Pixel Pitch0.53 mm
• Physical Seam1.7 mm
• Bezel Width1.2 mm (top/left), 0.5mm (bottom/right)
• Resolution1920 × 1080@60 Hz(downward compatible)
• Brightness500 cd/m²
• Viewing AngleHorizontal 178°, vertical 178°
• Color Depth8 bit, 16.7 M
• Contrast Ratio1200:1
• Response Time8 ms
• Color Gamut72% NTSC
• Surface TreatmentHaze 25%，2H

Interface

• Video & Audio InputVGA × 1, HDMI × 1, DVI × 1, DP × 1, USB × 1
• Video & Audio OutputHDMI × 1
• Control InterfaceRS232 IN × 1, RS232 OUT × 1

Power

• Power Supply100-240 VAC, 50/60 Hz
• Power Consumption≤ 160 W
• Standby Consumption≤ 0.5 W

Working Environment

• Working Temperature0°C to 40°C (32°F to 104°F)
• Working Humidity20% to 80% RH (non-condensing)
• Storage Temperature-20°C to 60°C (-4°F to 140°F)
• Storage Humidity10% to 90% RH (non-condensing)

General

• Casing MaterialSGCC
• VESA600 (H) mm × 400 (V) mm
• Product Dimension (W × H × D)1021.18 mm × 575.77 mm × 78.31 mm
• Package Dimension (W × H × D)1159(W) mm × 725(H) mm ×310(D) mm
• Net Weight17.0 ± 0.5 kg (37.5 ± 1.1 lb) for single display
• Gross Weight30.0 ± 0.5 kg (66.0 ± 1.1 lb) for carton with a single display
• Packing ListCarton with a single display : LCD display × 1, power cable × 1, network cable × 1, 2-meter HDMI cable × 1, screw × 4, remote control × 1, IR receiver × 1, RS-232 converter × 1, quick start guide (multilingual) × 1, quick start guide (English) × 1
