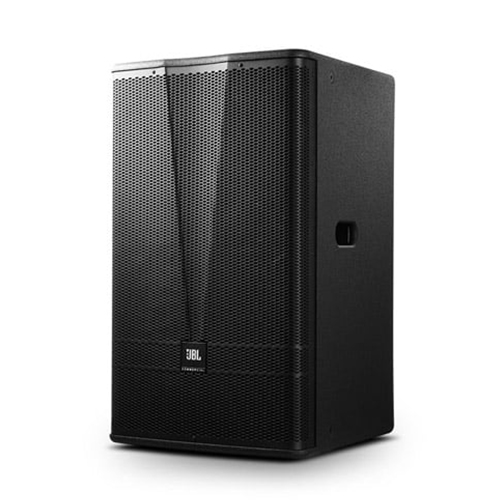

ตู้ลำโพง ยี่ห้อ JBL รุ่น CV3015/66

Features:

• 60° × 60° horn creates even coverage
• 5” customized low frequency driver for highly efficient electro-acoustic conversion
• JBL 2408-2 high frequency compression driver for lower distortion
• Enclosure constructed from 15 mm quality plywood and finished in DuraFlexTM coating
• Multiple M10 suspension points and a 35 mm pole-mounting socket for flexible installation
• Two integral handles for easy transport and setup
• High-strength front grille protects the system from foreign objects
• Rotatable JBL COMMERCIAL logo
• For commercial installed sound applications, e.g. background music playback or events in restaurants or hotel ballrooms.
• As main speaker for use with subwoofers.

Specifications

• Frequency Range (-10 dB) : 45 Hz – 20 kHz
• FREQUENCY RESPONSE (±3dB) : 75 Hz – 20 kHz
• Coverage : 60°×60°
• System Power Rating (IEC, 2 hrs) : 400 W / 800 W / 1600 W (continuous / music / peak)
• Maximum SPL (1m) : 125 dB continuous average (131 dB peak)
• System Sensitivity (2.83V@1m)  : 99 dB
• Nominal impedance : 8 Ω
• Low-Frequency Diver : 1 × 15” woofer, 3” voice coil
• Hight-Frequency Diver : 1 × 2408-2, 1.5” voice coil, annular single diaphragm
• Enclosure : Trapezoidal with 20° side angles, 15mm poplar plywood, fitted with handles
• Suspension : 13 (3@top, 3@buttom, 2@each side, 3@rear) × M10 threaded hardware; 35mm OmniMount pole-mounting socket
• Exterior color : Black DuraFlexTM finish
• Net cover : Powder coated, 1.5 mm perforated steel
• Input Connector : NL4 Neutrik Speakon® in parallel for loop-through
• Dimensions (H × W × D) : 680 mm × 414.4 mm × 445 mm (26.8 in × 16.3 in × 17.5 in)
• Weight : 22.95 kg (50.6 lbs)
