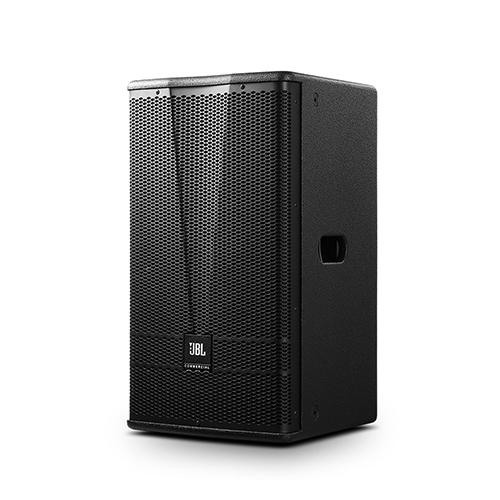

ตู้ลำโพง ยี่ห้อ JBL รุ่น CV3010/99

Features:

• 90° × 90° horn creates even coverage
• 10” customized low frequency driver for highly efficient electro-acoustic conversion
• JBL 2408-2 high frequency compression driver for lower distortion
• Enclosure constructed from 15 mm quality plywood and finished in DuraFlexTM coating
• Multiple M10 suspension points and a 35 mm pole-mounting socket for flexible installation
• Two integral handles for easy transport and setup
• High-strength front grille protects the system from foreign objects
• Rotatable JBL COMMERCIAL logo
• For commercial installed sound applications, e.g. background music playback or events in restaurants or hotel ballrooms.
• As main speaker for use with subwoofers.

Specifications

• Frequency Range (-10 dB) : 50 Hz – 20 kHz
• FREQUENCY RESPONSE (±3dB) : 85 Hz – 20 kHz
• Coverage : 90°×90°
• System Power Rating (IEC, 2 hrs) : 300 W / 600 W / 1200 W (continuous / music / peak)
• Maximum SPL (1m) : 120 dB continuous average (126 dB peak)
• System Sensitivity (2.83V@1m)  : 95 dB
• Nominal impedance : 8 Ω
• Low-Frequency Diver : 1 × 10” woofer, 2.5” voice coil
• Hight-Frequency Diver : 1 × 2408-2, 1.5” voice coil, annular single diaphragm
• Enclosure : Trapezoidal with 20° side angles, 15 mm poplar plywood, fitted with handles
• Suspension : 13 (3@top, 3@buttom, 2@each side, 3@rear) × M10 threaded hardware; 35 mm OmniMount pole-mounting socket
• Exterior color : Black DuraFlexTM finish
• Net cover : Powder coated, 1.5 mm perforated steel
• Input Connector : NL4 Neutrik Speakon® in parallel for loop-through
• Dimensions (H × W × D) : 535 mm × 305 mm × 329 mm (21.1 in × 12.0 in × 13.0 in)
• Weight : 14.4 kg (31.7 lbs)
