Consistent Coverage Extended Bass

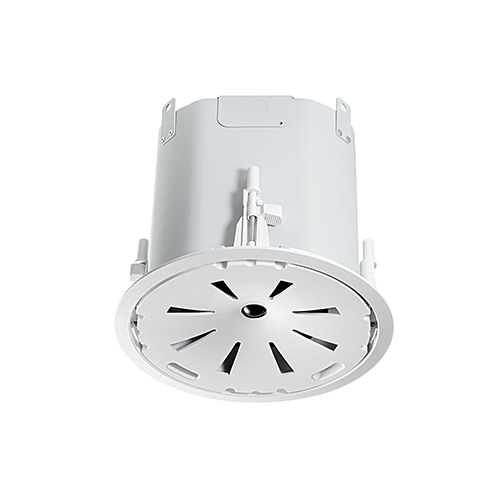

The Control 47C/T features extended bass performance with a wide 120° of coverage that allows fewer speakers to cover a large space. Ideal for a wide variety of applications, the Control 47C/T is perfect for settings ranging from restaurant and retail to large casinos and beyond.

Features

• Proprietary Conical RBI® Technology Provides Wide, Consistent Coverage
• Flat Frequency Response and Superior Performance
• Large Backcan for Bass Response to 55 Hz
• Elegant design fits any décor

Specifications

• Frequency Range : 55 Hz – 20 kHz
• Power Rating : IEC System Long-Term Ratings (low-Z direct): 150 Watts Continuous Program Power , 75 Watts Continuous Pink Noise (300W peak), hrs
• Sensitivity : 91 dB (1kHz – 16 kHz)
• Transformer Taps : 60W, 30W, 15W (7.5W at 70V only)
• Coverage Angle : 120° conical, constant directivity
• Impedance : 8 ohms (in bypass mode)
• Drivers  : LF Driver: 165 mm (6.5 in) , HF Driver: 25 mm (1 in)
• Input Connectors : Two removeable locking 2-pin connectors with screwdown terminals.
• Included Accessories : C-rings, tile rails, paint shield, cutout template, Grille
• Suspension Tabs : Three, on top panel
• Dimensions (Diameter x Depth) : 305mm Diameter x 259mm Diameter Depth (12.0 in x 10.2 in)
• Maximum SPL (1m) : 110 dB (low-impedance, 116 dB peak) , 109 dB (top 70V/100V tap)
• Color : White
• Safety Agency : Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
• Backcan : formed steel (included “blind-mount”)
• Baffle/Rim : ABS baffle with UL94-V0 flame class fire rating.
• Ceiling Cutout Size : 282 mm Diameter (11.1 in) (cardboard cutout template included)
• Optional Accessories : MTC-47NC New Construction Bracket MTC-47MR Mud Ring Construction Bracket
• Plenum Usage : Yes, backcan included
