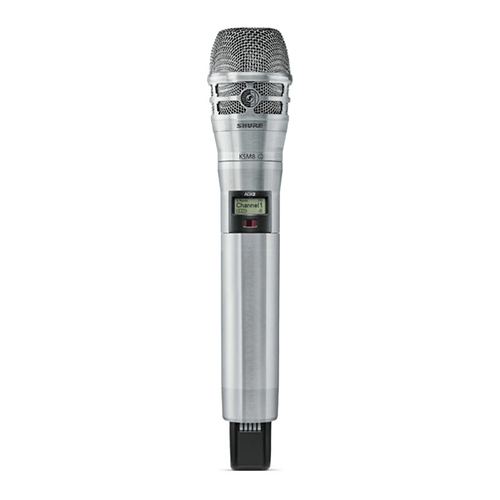

ไมโครโฟนไร้สาย ยี่ห้อ SHURE รุ่น ADX2/K8N=-P55

SPECIFICATIONS

(SUBJECT TO CHANGE)

• Gain Offset Range

–12 to 21 dB (in 3 dB steps)

• Battery Type

SB920 Rechargeable Lithium-Ion

• Battery Run Time @10 mW

up to 9 hours

• Dimensions (L × Dia.)

10.0 × 2.0 in

(254 × 51 mm)

• Weight

11.9 oz (338 g)

wihtout battery

• Housing

Cast Aluminum

AUDIO INPUT

• Configuration

Unbalanced

• Maximum Input Level 1 kHz at 1% THD

145 dB SPL, typical (SM58)

Note: dependent on microphone type

RF OUTPUT

• Antenna Type

UHF 1/4 Wave

• Occupied Bandwidth

<200 kHz

• Modulation Type

Shure Axient Digital Propietary

• Power

2 mW, 10 mW, 20 mW, 40 mW

Varies by region. See Frequency Range and

Output Power Table.

• Specific Absorption Rate (SAR)

<0.19 W/kg

SHOWLINK®

• Network Type

IEEE 802.15.4

• Antenna Type

ZigBee Dual Conformal

• Frequency Range

2.40 to 2.4835 GHz (24 Channels)

• RF Output Power Varies By Region

10 dBm (ERP)
