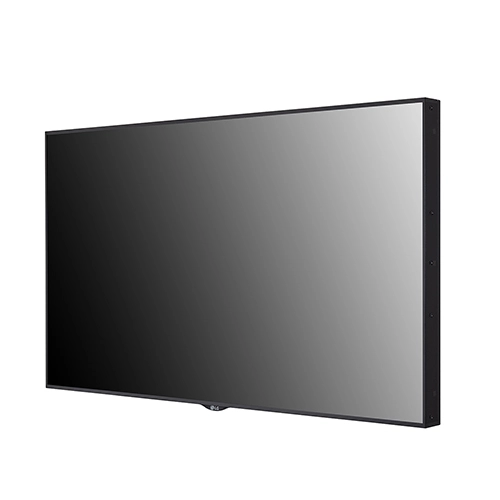

Signage Display ยี่ห้อ LG รุ่น 75XF3C

Key Feature

• Brightness : 3,000 cd/m² (Typ.)
• Life Time : 50,000 hours
• Bezel : 11.8 mm(Even bezel)
• Depth : 123.9 mm
• Interface : HDMI (2) / DP / DVI / RJ45 / IR / RS232C / USB / SD Card / External speaker out (L/R)

Advanced Reliability
with Enhanced Brightness

* All images in this datasheet are for illustrative purposes only.

High Visibility Under Strong Sunlight

With a brightness of 3,000 nits, 75XF3C-B boasts high visibility in bright environments. In addition, its clear visibility can deliver a variety of information even to those wearing polarized sunglasses.

Superb Picture Quality with Ultra HD Resolution

With the resolution of UHD, it makes the color and details of the contents vivid and realistic. In addition, the wide viewing angle applied with an IPS panel, provides clear contents.

* Within 178 degree

Wide Range of Operating Temperature

75XF3C-B can be used under a wide range of operating temperatures from 0°C to +50°C.

Conformal Coating

Conformal Coating* protect the circuit board, power board against dust, iron powder, humidity, etc.

* Thin protective films/breathing membranes that filter water vapor and solid debris

Low Power Consumption Using the M+ Panel

The M+ panel can offer high energy efficiency and cost savings as decreasing power consumption by approx.

* M+ IPS reduced approx. by 35% BLU Power consumption (IEC62087, 10 min) compared to RGB IPS, tested under same brightness (@fullwhite, 400 nit)
** Specific features can differ from circumstances.

Smart Brightness Control

The screen brightness is automatically adjusted depending on the ambient light. The brightness is increased in light for better visibility, while it is decreased in darkness for efficient power management.

webOS Smart Platform

Quad Core SoC (System-on-Chip) can execute several tasks at the same time without a separate media player. In addition, webOS 3.0 platform enhances user convenience with intuitive UI and simple app development tools.

Web Monitoring

The LG Control Manager*, the embedded web monitoring program, allows a variety of parameters to be diagnosed in real time such as temperature, ambient light, and gyro sensors. It can be easily controlled at all times.

* Enabled by wired LAN connection
