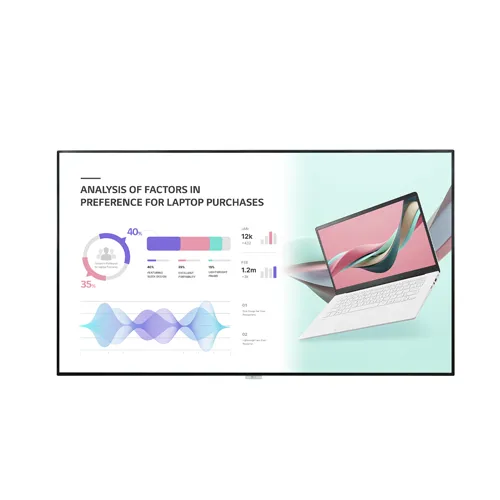

Digital Signage ยี่ห้อ LG รุ่น 65UH5N-E
- Resolution : 3,840 x 2,160 (UHD)
- Brightness (Typ.) : 500 nit
- The carbon footprint of this product has been certified and achieved a reduction.
- Bezel : 8.9 mm (T/R/L), 12.9 mm (B)
- Interface : HDMI(3) / DP / USB 2.0 / RS232C / RJ45 / Audio / IR
- webOS Smart Platform
UHD Signage Display with LG webOS Platform and Advanced Security
* All images in this page are for illustrative purposes only.
High Resolution Display
It offers a resolution that is four times higher than FHD, satisfying customers visually. Additionally, the anti-glare coating on the screen reduces screen reflection in bright lighting environments, increasing visibility and legibility, providing customers with a comfortable screen.
Sturdy Design with Fire Flame Resistance
The outer cover of the product is designed to effectively resist fire flame spread, making the product a great fit for installation in public spaces.
* Based on third party testing, the case top and back cover of the product are classified Class A1 (case top) and A2 (back cover) under EN13501-1, Class 1 under BS476 Part 7.
Convenient webOS Platform
The UH5N-E is equipped with a high-performance SoC that allows for multiple tasks to be performed without a separate media player. The webOS platform provides app development tools with an intuitive UI that enhances user convenience, enabling easy connection with external sensors and webOS partner apps to create an SI-friendly environment.
Stylish interior with Art Frame
Enhance the sophistication of your space with the Art Frame featuring bezels accessories, providing an artistic touch to the UH5N-E for a more refined interior. Bezels accessories empower customers to utlize their UH5N-E to seamlessly blend with their interior, transforming it into a chic decorative centerpiece.
* Bezel accessories are sold separately at an additional cost. For more information, please contact LG Sales.
Design For space utilization
Designed with thin bezels and simple cable management, the UH5N-E saves space. With specialized hidden power inlets, it can be installed close to the wall, leaving only about 13 mm of space with the slim bracket.
* All images are for illustrative purposes only.
* The product image will differ slightly from the actual appearance of the product due to the variance caused by each inch option.
Durability that Provides Reliability
Optimized for business environments, the UH5N-E is protected against salt, dust, iron powder and humidity thanks to conformal coating on power board, allowing for stable operation. Also, its customer-centric features, such as IP5x, 30-degree tilting and Shock Monitoring, provide both reliability and satisfaction.
Enhanced Security Features
The UH5N-E provides security features, including LG’s Enhanced Kernel Protection (EKP) technology, protecting important data from external access or attacks. LG UHD Signage also holds reliable certification in the field of information security, maintaining customers’ data and businesses securely. For example, this model is ISO/IEC 15408 Common Criteria EAL2 Certified.
Sustainability
With a commitment to innovation and sustainability, LG is continuously striving to create a better future for manufacturers, consumers, and future generations. With a focus on minimizing waste, maximizing recycling, and efficient power management, LG actively strives for sustainability, obtaining various certifications such as FCC EMC Class B.
SuperSign Solutions
SuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you.
Carbon Footprint Certification
The cradle-to-grave carbon footprint of UH5N-E has been reduced.
* UH5N-E achieved Reducing CO2 certification.
* The Carbon Trust Assurance for UH5N-E is valid until 07 Sep 2025.
* The Carbon Trust Assurance for UH5N-E is certified against PAS2050:2011.
Panel
| Screen Size | 65″ |
|---|---|
| Panel Technology | IPS |
| Back Light Type | Edge |
| Aspect Ratio | 16:9 |
| Native Resolution | 3,840 x 2,160 (4K UHD) |
| Refresh Rate | 60 Hz |
| Brightness (Typ.) | 500 nit |
| Contrast Ratio | 1,100:1 |
| Dynamic CR | 1,000,000 : 1 |
| Color gamut | BT709 95% |
| Viewing Angle (H x V) | 178 × 178 |
| Color Depth | 1.07 Billon Colors (10 bit (D)) |
| Response Time | Tr : 8ms / Tf :10ms |
| Surface Treatment (Haze) | 28 % |
| Life Time (Min.) | 50,000 Hrs |
| Operation Hours (Hours / Days) | 24 / 7 |
| Portrait / Landscape | Yes / Yes |
Mechanical
Specification
| Bezel Color | Black |
|---|---|
| Bezel Width | 8.9 mm (T/R/L), 12.9 mm (B) |
| Weight (Head) | 24.2 kg |
| Packed Weight | 30.4 kg |
| Monitor Dimensions (W × H × D) | 1,450.3 x 830.3 x 29.7mm (Without IR) |
| Carton Dimensions (W × H × D) | 1,600 x 970 x 172mm |
| Handle | No |
| VESA™ Standard Mount Interface | 300 × 300 mm |
Key Feature
| Internal Memory 16 GB, Built-in Wi-Fi, Sensor (Temperature Sensor, Auto Brightness Sensor (External IR), Acceleration (Gyro) Sensor), Local Key Operation, Built-in Speaker, webOS 6.0, Local Contents Scheduling, Group Manager, USB Plug & Play, Fail Over, Image (Booting Logo Image, No Signal Image), Sync (RS-232C Sync, Local Network Sync), PIP, PBP (4), Screen Share, Video Tag (4), Play via URL, Rotation (Screen Rotation, External Input Rotation), Gapless Playback, Tile Mode Setting (Max. 15 × 15), Setting Data Cloning, SNMP, ISM Method, Auto Set ID, Status Mailing, Control Manager, 3rd Party Compatibility (Cisco Certi, Crestron Connected®), Smart Energy Saving, PM Mode, Wake on LAN, Network Ready, Beacon, HDMI-CEC, SI Server Setting, webRTC, Pro:Idiom |
Environment Conditions
| Operation Temperature | 0 °C to 40 °C |
|---|---|
| Operation Humidity | 10 % to 80 % |
Power
| Power Supply | AC 100-240 V ~, 50/60 Hz |
|---|---|
| Power Type | Built-In Power |
Power Consumption
| Typ./Max. | 145W / 200W |
|---|---|
| Smart Energy Saving (70%) | 101.5W |
| DPM | 0.5W |
| Power off | 0.5W |
| BTU (British Thermal Unit) | 495 BTU/Hr(Typ.), 682 BTU/Hr(Max) |
Standard (Certification)
| BS476 Part7 : Class 1 (case top / back cover) EN13501-1 : Class A1 (case top) / Class A2 (back cover) |
Certification
| Safety | CB / NRTL |
|---|---|
| EMC | FCC Class “B” / CE / KC |
| ePEAT (US Only) | Yes |
| ErP / Energy Star | Yes (NewErP) / Yes |
| ISTA6 | Yes (~Sep. 23y, US Suffix Only) |
| Carbon Trust | Yes (CO2 Reducing (TBD)) |
OPS Compatibility
| OPS Type Compatible | No |
|---|---|
| OPS Power Built In | No |
Software Compatibility
| SuperSign CMS, SuperSign Control / Control+, SuperSign WB, SuperSign Cloud, Mobile CMS, LG ConnectedCare |
Connectivity
| Input | HDMI In (3, 3,840 × 2,160 @ 60Hz, HDCP 2.2/1.4), DP In (3,840 × 2,160 @ 60Hz, HDCP 2.2/1.3), RS-232C In (4 Pin Phone-jack), RJ45 (LAN) In, IR In, USB In 2.0 (Type A) |
|---|---|
| Output | HDMI Out (3,840 × 2,160 @ 30Hz, Input (HDMI1/2/3/DP)), Audio Out, RS-232C Out (4 Pin Phone-jack), Daisy Chain (Input HDMI, DP / Output HDMI) |
Language
| English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Türkiye, Arabic |
Accessory
| Basic | Remote Controller(include battery 2ea), Power Cord, QSG, Regulation Book, Phone to RS232C Gender, Cable Holder(2EA), AC Cord Holder (1EA) |
|---|---|
| Optional | Slim Wall Mount (WB21LMA/B), Wall Mount (OLW480A/B) Wall Mount Adapter (AM-B330S) |
Special Feature
| Tilt (Facedown) | Yes (Max 30º degree, 40ºC temperature) |
|---|
